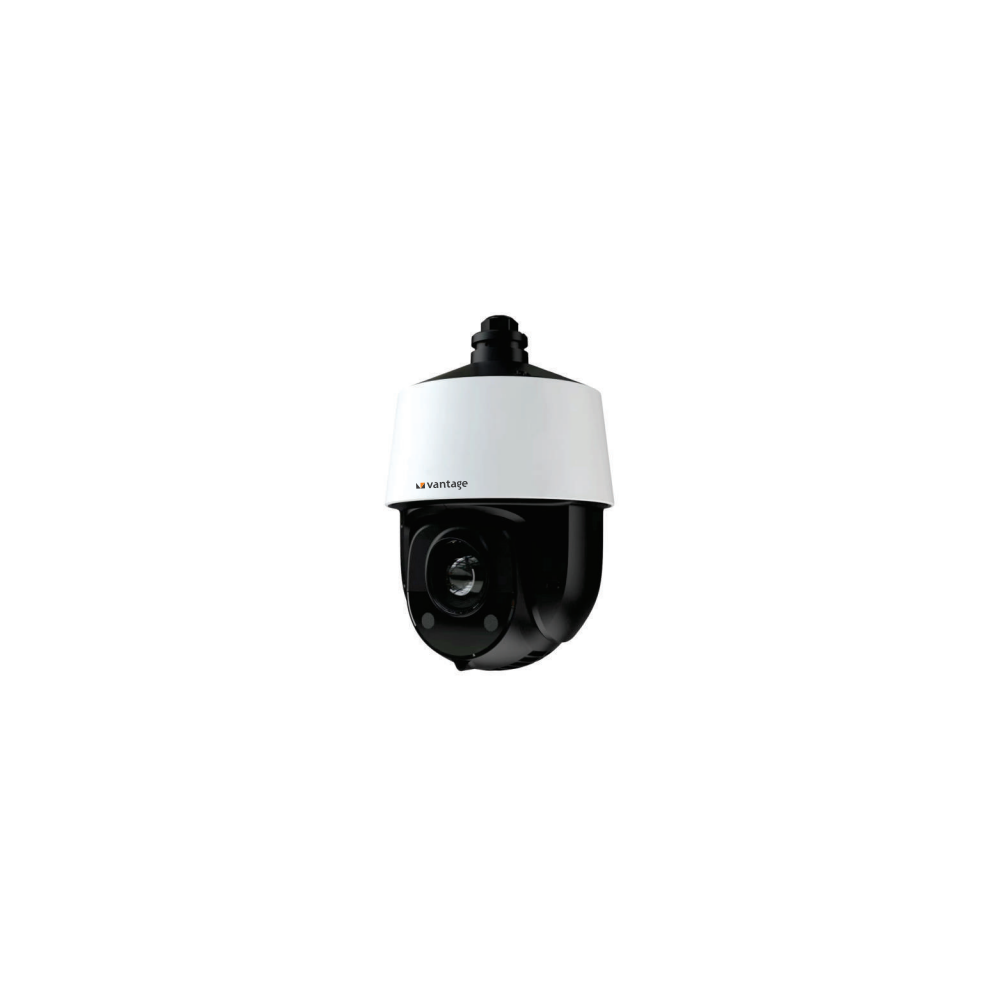

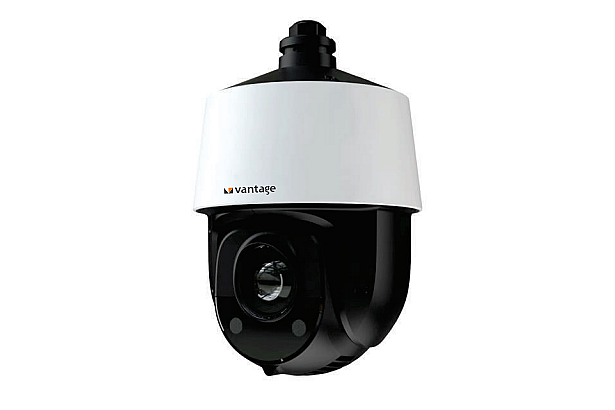

8MP IP PTZ Camera with 25x Optical Zoom and Smart AI

8MP IP PTZ Camera with 25x Optical Zoom and Smart AI
VP-NC9798P-AZ25IR6T1
Image of '1/2.8'' CMOS Progressive Scan Sensor' feature Image of '360° Endless Panning' feature Image of 'Backlight Compensation' feature Image of 'Privacy Zone' feature Image of 'Ultra HD' feature
  • Ultra High Definition 8MP (3840×2160) resolution
  • 1/2.8" Progressive Scan CMOS Sensor
  • Inbuilt WDR, 3D DNR, HLC, BLC & OSD functions
  • Support H.265+/H.265/H.264+/H.264/MJPEG video compression
  • 25x Optical zoom, Accurate and fast focusing
  • 360° endless panning
  • Inbuilt IR LEDs for 150 mtrs IR range
  • IP66 Weather proof outdoor enclosure
  • Sensor and resolution: 1/2.8" Progressive Scan CMOS, Ultra HD 8MP at 3840×2160 (4K), 25/30fps on the main stream.
  • Optics: 4.8 mm to 120 mm motorized lens with 25x optical zoom and fast, accurate focusing, aperture range F1.65 to F3.8.
  • IR night vision: Built-in high-performance IR LEDs delivering up to 150 metres range, with True Day and Night switching via mechanical IR-cut filter.
  • Low-light performance: Minimum illumination of 0.01 Lux (colour) and 0.002 Lux (B/W), down to 0 Lux with IR active.
  • PTZ movement: 360° endless pan, tilt from -5° to 90° with auto flip, 360 presets, 8 patrols (up to 16 presets each), and 4 tour patterns.
  • Image enhancement: WDR, 3D DNR, HLC, BLC and OSD for clear footage in high-contrast and low-light scenes.
  • Video compression: H.265+/H.265/H.264+/H.264/MJPEG with triple-stream output and bitrate from 64Kbps to 16Mbps.
  • Smart analytics: Tripwire, bi-directional tripwire, illegal intrusion detection, region entrance/exit detection, unattended baggage and object removal detection, vehicle detection and tracking, plus face detection and capture (up to 15 faces per scene).
  • Connectivity and storage: ONVIF-compliant, RJ45 10M/100M Ethernet with PoE+ (802.3at), micro SD onboard storage up to 256GB, 16 concurrent users across 3 access levels, plus 1CH alarm in/out.
  • Build and protection: IP66 weatherproof enclosure, IK10 impact rating, 4,000V lightning protection, operating range -40°C to +60°C. Weight approx. 2.1 kg.
