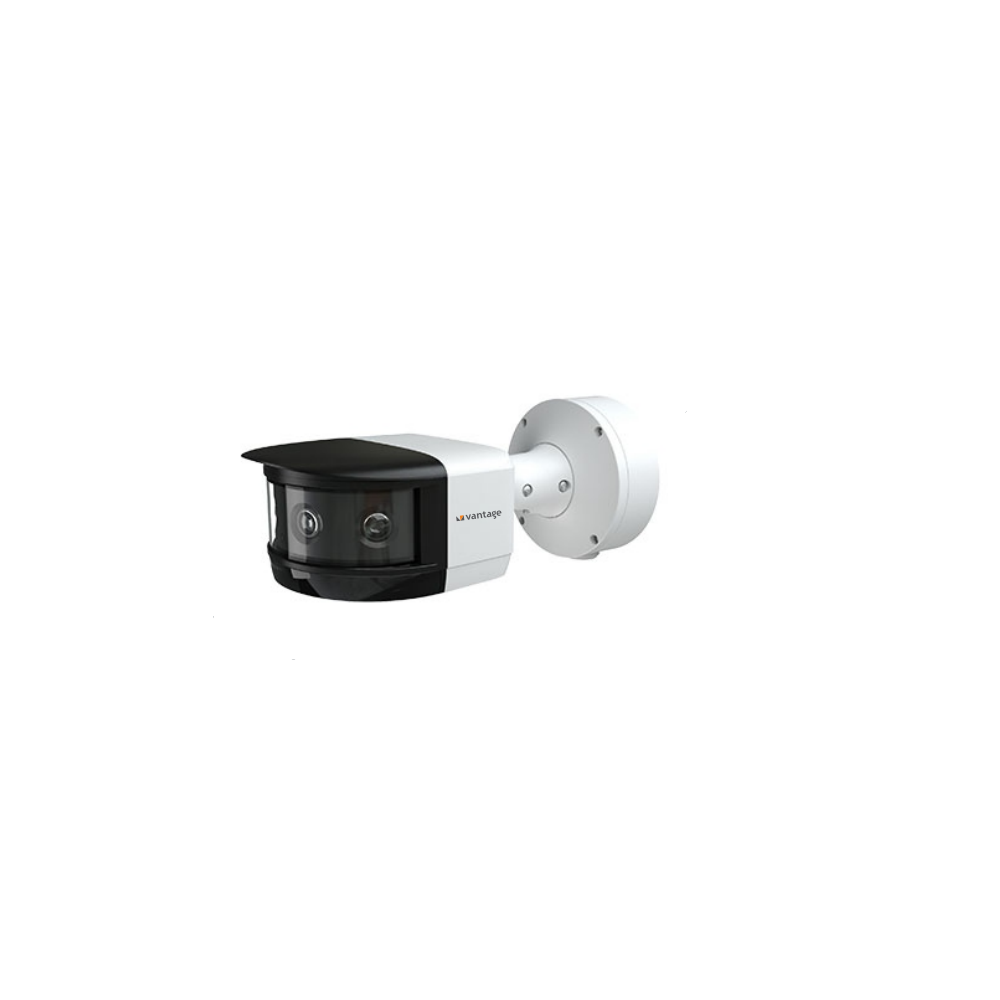

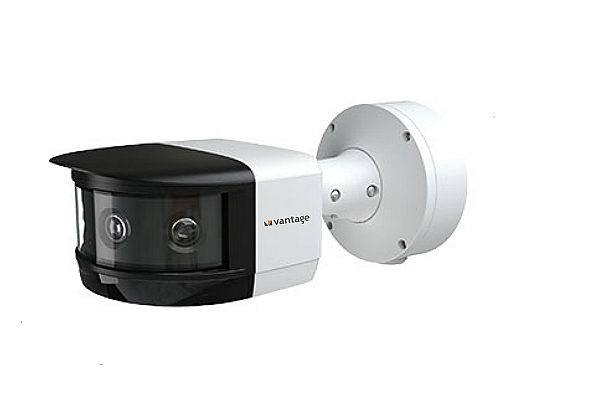

8MP, 180° Panoramic Multilens IP Camera

8MP, 180° Panoramic Multilens IP Camera
VP-NC91428PD-AF3IRT1
Image of '1/2.8'' CMOS Progressive Scan Sensor' feature Image of '180°' feature Image of 'e-PTZ' feature Image of 'IP67 Weather Proof Outdoor Enclosure' feature Image of 'SD Card' feature
  • Ultra High Definition 8MP (4096X1800) resolution
  • High performance IR Cut filter
  • Inbuilt Starlight ,3D DNR, HLC, ROI, Defog functions
  • Megapixel lens 3.3 mm, angle of view: 180°
  • Multiple ePTZ streams with preset and patrol function
  • Support on-board storage, up to 128 GB
  • Four 1/2.8" Progressive Scan CMOS sensors with 4096 x 1800 effective pixels and 180° angle of view via 3.3mm M12 lens
  • Maximum resolution 4096 x 1800 at 25fps (50Hz) and 30fps (60Hz) with H.265, H.264, and MJPEG compression
  • Video bit rate 128 Kbps to 16 Mbps with H.265 main profile and G.711A/U audio compression
  • Minimum illumination: 0.03 Lux (color) and 0.001 Lux (B&W) at F1.2, with 0 Lux at IR on and IR range up to 20 metres
  • True Day/Night with ICR, electronic shutter 1s to 1/10,000s, signal-to-noise ratio above 50dB
  • Inbuilt 3D DNR, HLC, defog, ROI, backlight compensation with adjustable saturation, brightness, chroma, contrast, and NR
  • Smart analytics including object removal detection, regional intrusion detection, line crossing detection, and abnormal video detection
  • Built-in Micro SD card slot supporting up to 128GB with alarm triggers via SD card, email, motion detection, and video-tampering detection
  • 1 RJ45 10/100 ethernet port with protocols: TCP/IP, HTTP, HTTPS, IPv4/IPv6, FTP, SMTP, RTSP, RTP, RTCP, DHCP, DDNS, NTP, SNMP, UPnP, PPPoE, 802.1x, IGMP, ICMP
  • IP67 weatherproof, IK10 impact protection, operating temperature -30°C to +60°C, dimensions 288.4 x 137.7mm, weight 2.1kg, powered by 12VDC or PoE (802.3af), certified CE, FCC, and RoHS
