Recorders and Video Management Systems

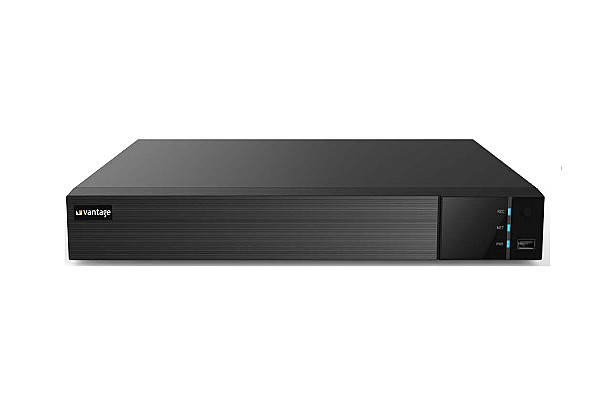

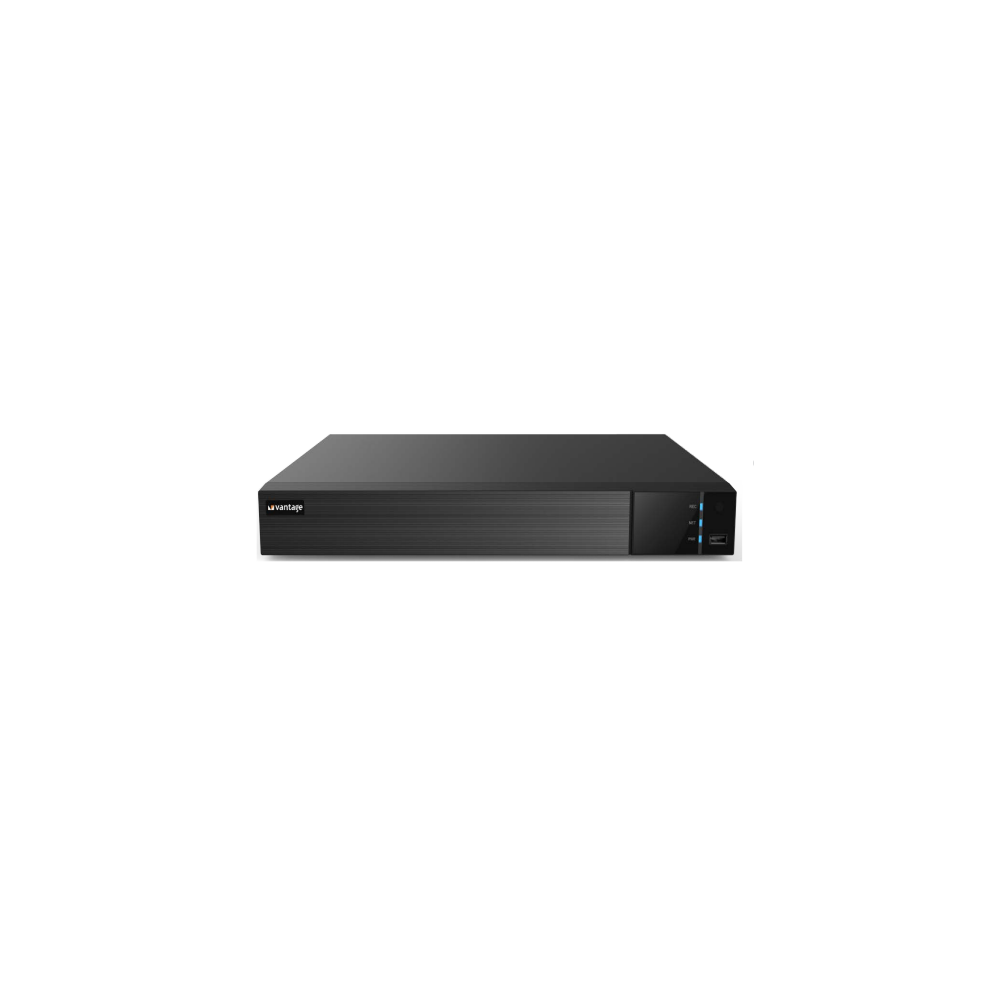

8 Channel NVR

8 Channel NVR
VV-NV3508-K1ST1
Image of 'E-mail Alert' feature Image of 'H.265+ Compression' feature Image of 'Mobile Monitoring' feature Image of 'Motion Detection' feature Image of 'TCP/IP' feature
  • ONVIF Supported
  • Up to 8 Megapixels Resolution Display and Recording
  • H.265+ video compression technology with real time encoding
  • Full function CMS (Central monitoring software) supported
  • Pentaplex : preview, record, playback, backup and remote access
  • 1 x Gigabit (10/100/1000) network port
  • Dual streaming technology to encode recording stream and network stream separately
  • Supports remote monitoring on Mobile Client (Android, IOS) and IE
  • Multi-type recording: manual / timed / motion / sensor / POS /AI recording
  • 8-channel IP video input with recording and playback resolutions up to 8MP, 6MP, 5MP, 4MP, 3MP, 1080P, 960P, 720P, 960H, D1, and CIF
  • H.265S, H.265+, H.265, and H.264 video compression with G.711 audio compression and dual stream recording
  • HDMI output at 3840x2160 and VGA at 1920x1080, supporting 1/4/6/8/9 multi-screen display
  • AI face detection across 8 channels via IPC and 2 channels on-device (2MP), with statistics by day, week, month, and quarter
  • Human and vehicle classification across 8 channels via IPC and 2 channels on-device (2MP), with perimeter protection supported
  • 80/80 Mbps incoming/outgoing bandwidth with single Gigabit (10/100/1000) RJ45 port and max 64 simultaneous user connections
  • Protocols supported: TCP/IP, IPv4, IPv6, UDP, PPPoE, DHCP, DNS, DDNS, NTP, HTTP, HTTPS, SMTP, RTSP, RTP, RTCP, FTP, WebSocket, SNMP, IGMP, ONVIF
  • 1 SATA 3.0 port up to 10TB, with dual stream recording, network backup, and local backup via USB and USB mobile HDD
  • Recording modes include manual, sensor, motion, exception, smart events, and AI recording with time slice, time, event, and tag search
  • Power consumption under 105W (excluding HDD), operating temperature -10°C to +50°C, dimensions 300 x 249 x 45mm, certified CE, FCC, and RoHS
