8 Channel NVR

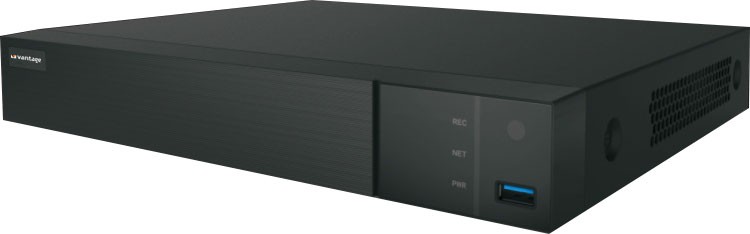

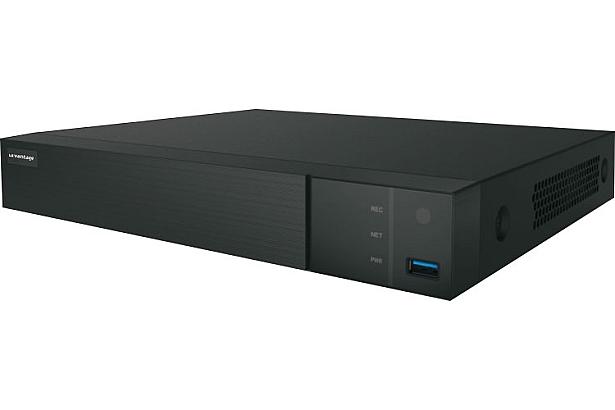

8 Channel NVR
VV-NV3508-2ST1
Image of 'E-mail Alert' feature Image of 'H.265 Compression' feature Image of 'Mobile Monitoring' feature Image of 'Motion Detection' feature Image of 'TCP/IP' feature
  • ONVIF Supported
  • Up to 5 Megapixels Resolution Display and Recording
  • H.265 video compression technology with real-time encoding
  • Full-function CMS (Central monitoring software) supported
  • Two-way audio supported
  • Gigabit (10/100/1000) network port
  • Dual streaming technology to encode recording stream and
    network stream separately
  • Supports remote monitoring on mobile clients (Android, IOS) and IE
  • 8-channel IP video input with recording and playback resolutions up to 8MP, 5MP, 4MP, 3MP, 1080P, 720P, and 4CIF
  • Main and sub-stream frame rate of 25fps (PAL) and 30fps (NTSC) with max 8-channel simultaneous playback
  • HDMI output at 4Kx2K/60Hz and VGA output at 1920x1080P/60Hz
  • Two-way audio with 1-ch RCA input (2.0 Vp-p, 1kΩ) and 1-ch RCA audio output
  • Single Gigabit (10/100/1000) RJ45 ethernet port with CBR and VBR bandwidth control
  • 2 SATA ports supporting up to 8TB each with manual, alarm, motion detection, and continuous recording modes
  • Search modes include time/date, alarm, motion detection, and exact search with overwrite mode supported
  • Alarm notifications via FTP and email with playback functions including fast forward, rewind, and digital zoom
  • Remote monitoring via Android and iOS apps with full CMS software support and DDNS, dynamic and static IP
  • Power consumption under 15W (excluding hard disk), operating temperature -10°C to +55°C, dimensions 430 x 300 x 55mm, weight under 1.60kg, certified CE, FCC, and RoHS
