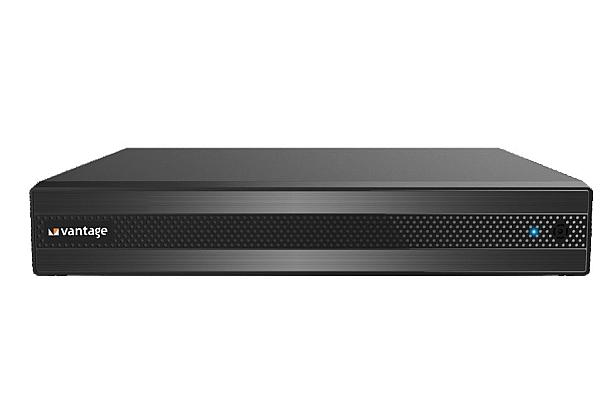

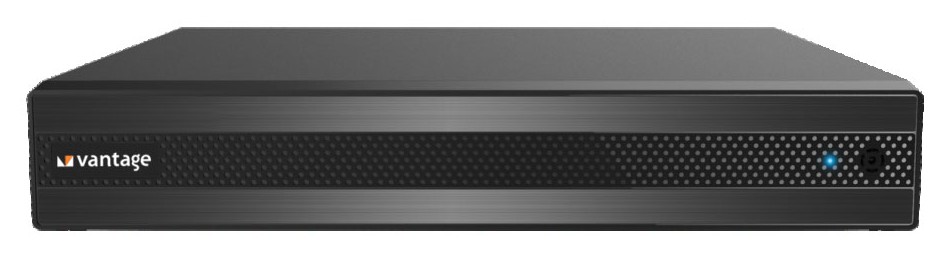

8 Channel NVR

8 Channel NVR
VV-NV3508-1ST1
Image of 'E-mail Alert' feature Image of 'H.265 Compression' feature Image of 'Mobile Monitoring' feature Image of 'Motion Detection' feature Image of 'TCP/IP' feature
  • ONVIF Supported
  • Up to 5 Megapixels Resolution and Recording
  • H.265 video compression technology with real time encoding
  • Full function CMS (Central monitoring software) supported
  • Dual streaming technology to encode recording stream and
    network stream separately
  • Supports remote monitoring on Mobile Client (Android, IOS) and IE
  • 8-channel IP video input with recording and playback resolutions up to 5MP, 4MP, 3MP, 1080P, 720P, and 4CIF
  • Main and sub stream frame rate of 25fps (PAL) and 30fps (NTSC) with max 8-channel simultaneous playback
  • HDMI output at 4Kx2K/60Hz and VGA output at 1920x1080P/60Hz
  • H.265 video compression with 64Mbps total bandwidth and CBR manual bandwidth control
  • 1 SATA port supporting up to 8TB storage with overwrite mode and manual, alarm, motion detection, and continuous recording modes
  • Single 10/100 RJ45 ethernet port with DDNS, dynamic and static IP support
  • Search modes include time/date, alarm, motion detection, and exact search accurate to the second
  • Alarm notifications via FTP and email with playback functions including fast forward, rewind, and digital zoom
  • Remote monitoring via Android and iOS apps, full CMS support, and IE browser access
  • Power consumption under 6W (excluding hard disk), operating temperature -10°C to +55°C, dimensions 255 x 233 x 42mm, weight under 1.60kg, certified CE, FCC, and RoHS
