Recorders and Video Management Systems

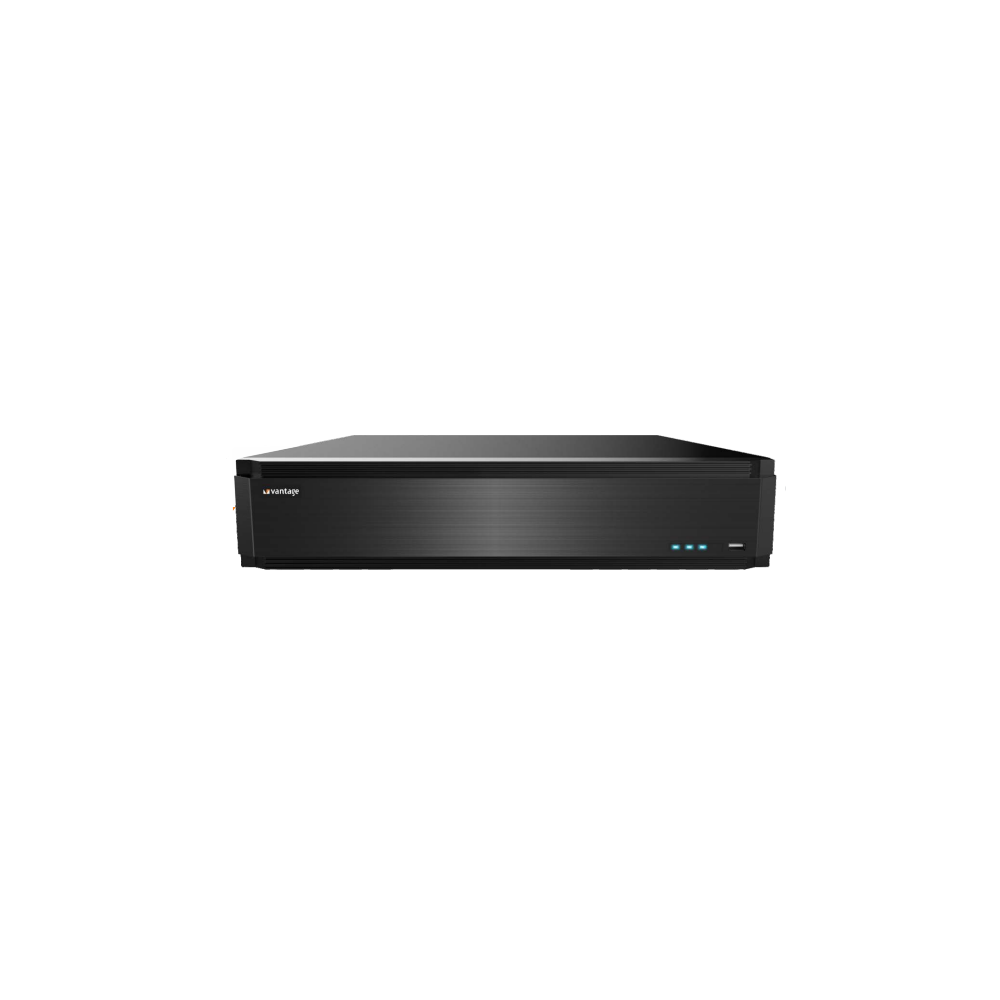

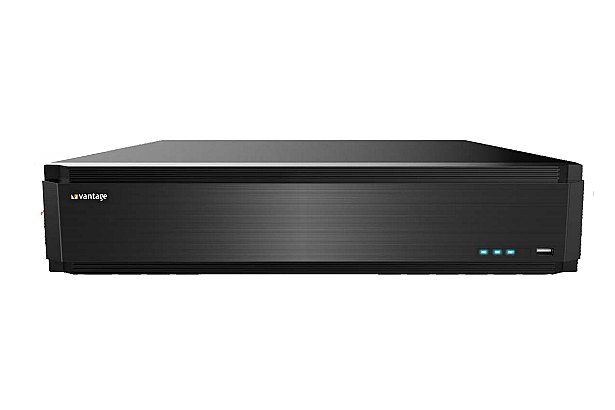

64 Channel Smart AI NVR with RAID
VV-NV3564-R8ST1
- Up to 8K Megapixels Resolution Display and Recording
- H.265+ video compression technology with real time encoding
- Preview, record, playback, backup and remote access are supported
- Full function CMS (Central monitoring software) supported
- Support RAID 0, 1, 5, 6, 10
- Support face detection and comparison
- ONVIF Supported
- Supports remote monitoring on Mobile Client (Android, IOS) and IE
- Support multiple VCA (Video Content Analytics) events, such as region intrusion, tripwire, etc.
- 64-channel IP video input with recording resolutions up to 16MP, supporting 25fps (PAL) and 30fps (NTSC)
- Four HDMI outputs: HDMI 1 at 7680x4320@60fps, HDMI 2 and 3 at 3840x2160@60fps, HDMI 4 at 1920x1080
- Video compression supports H.264, H.265, H.265+, and H.265S with G.711 audio compression
- Face detection across 64 channels via IPC, 16 channels on-device, with a 10,000-face database across 32 libraries at 36 comparisons per second
- Human and vehicle classification across 64 channels via IPC and 8 channels on-device, with attribute analysis supported
- 8 SATA ports supporting up to 10TB each, dual eSATA expansion, with RAID 0, 1, 5, 6, and 10 and N+1 failover
- Recording modes include manual, timed, motion, sensor, POS, and AI with smart search by time slice, event, tag, and motion
- Dual Gigabit (10/100/1000) RJ45 network ports with 640Mbps incoming and outgoing bandwidth
- Protocols supported: TCP/IP, HTTP, HTTPS, FTP, DHCP, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IPv6, PPPoE, SNMP, IGMP
- Power consumption under 50W, operating temperature -10°C to +50°C, dimensions 445 x 436 x 90mm, certified CE, FCC, and RoHS
