CCTV Surveillance Cameras

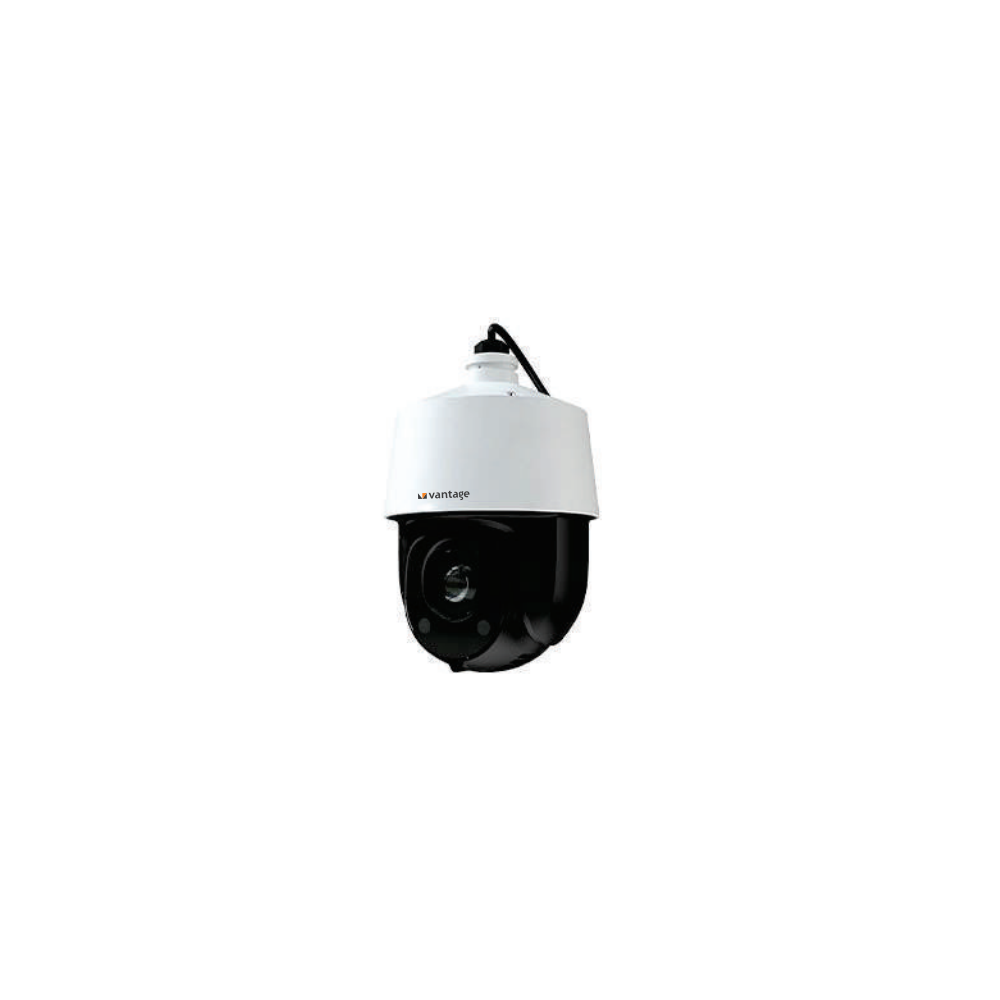

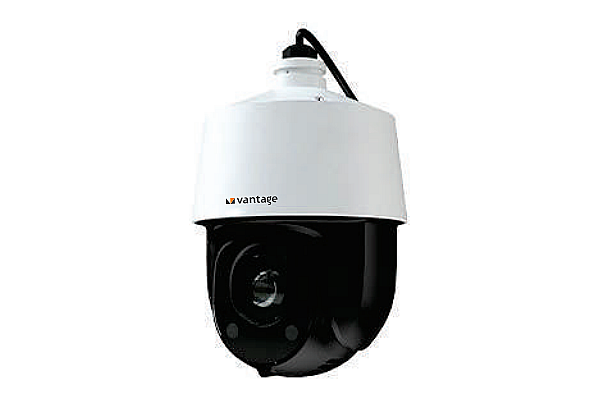

4MP IP PTZ Camera with 25x Optical Zoom and Smart AI

4MP IP PTZ Camera with 25x Optical Zoom and Smart AI
VP-NC9794P-AZ25IR6T1
Image of '1/2.7'' Progressive Scan CMOS Sensor' feature Image of '360° Endless Panning' feature Image of 'Backlight Compensation' feature Image of 'FULL HD' feature Image of 'Privacy Zone' feature
  • Full High Definition 4MP (2560×1440) resolution
  • 1/2.7" Progressive Scan CMOS Sensor
  • Inbuilt WDR, 3D DNR, HLC, BLC & OSD functions
  • Support H.265/H.264+/H.264/MJPEG video compression
  • 25x Optical zoom, Accurate and fast focusing
  • 360° endless panning
  • Inbuilt IR LEDs for 150 mtrs IR range
  • IP66 Weather proof outdoor enclosure
  • Sensor and resolution: 1/2.7" Progressive Scan CMOS, Full HD 4MP at 2560×1440, 25/30fps on the main stream.
  • Optics: 4.8mm to 120mm motorized lens with 25x optical zoom and fast, accurate focusing, aperture range F1.65 to F3.8.
  • IR night vision: Built-in high-performance IR LEDs delivering up to 150 metres range, with True Day and Night switching via mechanical IR-cut filter.
  • Low-light performance: Minimum illumination of 0.011 Lux (colour) and 0.002 Lux (B/W), down to 0 Lux with IR active.
  • PTZ movement: 360° endless pan, tilt from -5° to 90° with auto flip, 360 presets, 8 patrols (up to 16 presets each), and 4 tour patterns.
  • Image enhancement: WDR, 3D DNR, HLC, BLC, EIS and electronic Defog for clear footage in high-contrast and low-visibility conditions.
  • Video compression: H.265/H.264+/H.264/MJPEG with triple-stream output and bitrate from 64Kbps to 8Mbps.
  • Smart analytics: Tripwire, bi-directional tripwire, illegal intrusion detection, region entrance/exit detection, unattended baggage and object removal detection, vehicle detection and tracking, plus face detection and capture (up to 15 faces per scene).
  • Connectivity and storage: ONVIF-compliant, RJ45 10M/100M Ethernet with PoE+ (802.3at), micro SD onboard storage up to 256GB, 16 concurrent users, up to 6 live channels, plus 1CH alarm in/out.
  • Build and protection: IP66 weatherproof enclosure, IK10 impact rating, 6,000V lightning protection, operating range -40°C to +60°C. Weight approx. 2.1kg.
