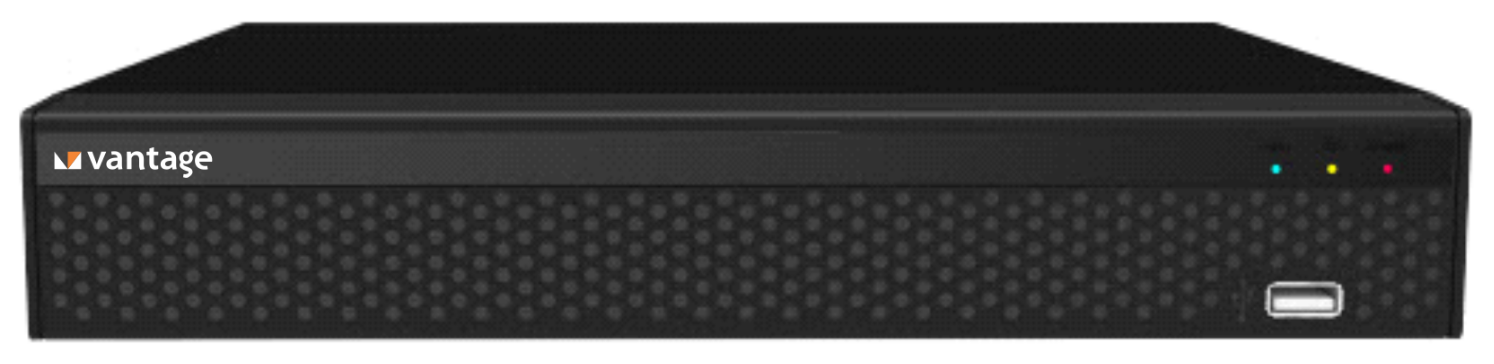

VV-NV2036-2SL3  36 CHANNEL NVR

Downloads:

  • ONVIF Supported
  • Up to 12 Megapixels Resolution Display and Recording
  • H.265+ video compression technology with real time encoding
  • Full function CMS (Central monitoring software) supported
  • Two way audio supported
  • Gigabit (10/100/1000) network port
  • Supports remote monitoring on Mobile Client (Android, IOS) and IE

Parameter

Specifications

System



Operating System

Embedded Linux Operating System

Multiplex Operations

Simultaneous multi-channel real-time recording, playback, network  operation, USB backup

User interface

Support 16-bit  true  color graphical menu interface and  mouse operation





Bandwidth



Bandwidth In / Out

300Mbps / 150Mbps





Interface



IP Video Input

36-ch

Two way Audio Input

1-ch, RCA (2.0 Vp-p,  1kΩ)

VGA Video Output

1920×1080P/60Hz, 1280x1024/60Hz, 1280x720/60Hz

HDMI Video Output

4K (3840 × 2160)/30Hz,4K (3840 × 2160)/60Hz, 1920 × 1080/60Hz,
1280 × 1024/60Hz,1280 × 720/60Hz, 1024 × 768/60Hz

Audio Output

1-ch, RCA (Linear,  1kΩ)

Audio Compression

G711u, G711a

Network

1 x Gigabit  (10/100/1000) ethernet port (RJ45)

USB

1 USB 2.0 Interfaces ,1 USB 3.0 Interface





Resolution & Frame Rate







Recording Resolution

12MP(4000×3000),4k(4096×2160),5MP(2592×1944),4MP(2688×1520),
3MP(2048×1536),1080P(1920×1080),960P(1280x960),720P(1280×720), D1 (720×576/720× 480)

Frame Rate

Main stream: 25 fps (P) / 30 fps (N); Sub  stream: 25 fps (P) / 30 fps (N)

Playback  Resolution

3CH 12MP@15fps,  4CH  4K@30fps, 6CH 30fps, 10CH 3M@30fps,
5MP@30fps, 8CH 4MP@16CH 1080P@30fps, 16CH 960P@30fps,
16CH 720P@30fps

Max playback capability

Max 16 ch playback





Network & Remote
Monitoring



Protocol


Protocol
DDNS
CMS
Mobile Client
Application
Bandwidth control

DDNS

Supported; Dynamic  and  Static  IP support

CMS

Full function CMS (Central  Monitoring Software)

Mobile Client Application

Supports android and  iOS APP for Smart phone and  tablets

Bandwidth control

VBR / CBR (Manual) supported





Features



Security

Password protection, user  management

Playback  Function

Play, Pause, Fast forward, Backward, Digital zoom

Search Mode

Time/Date, Alarm,  Motion Detection & Exact Search (accurate to second)

Alarm Notifications

FTP, Email notification supported





Recording & Storage



Video Compression

H265/H264/H265+/H264+

Recording Mode

Manual\Timer\Motion Detection

Storage

2 SATA port up to 12TB

Overwrite  Mode

Supported





General



Power Supply

DC12V/4A

Power Consumption

<12W (Hard disk not included)

Operating temperature

-10°C to + 55°C

Working Humidity

95%  or less  (non condensing)

Chassis

Standalone 1U chassis

Dimensions

310x295x46(mm)

Weight

3.5Kg





Certification



Certification

CE, FCC, RoHS
