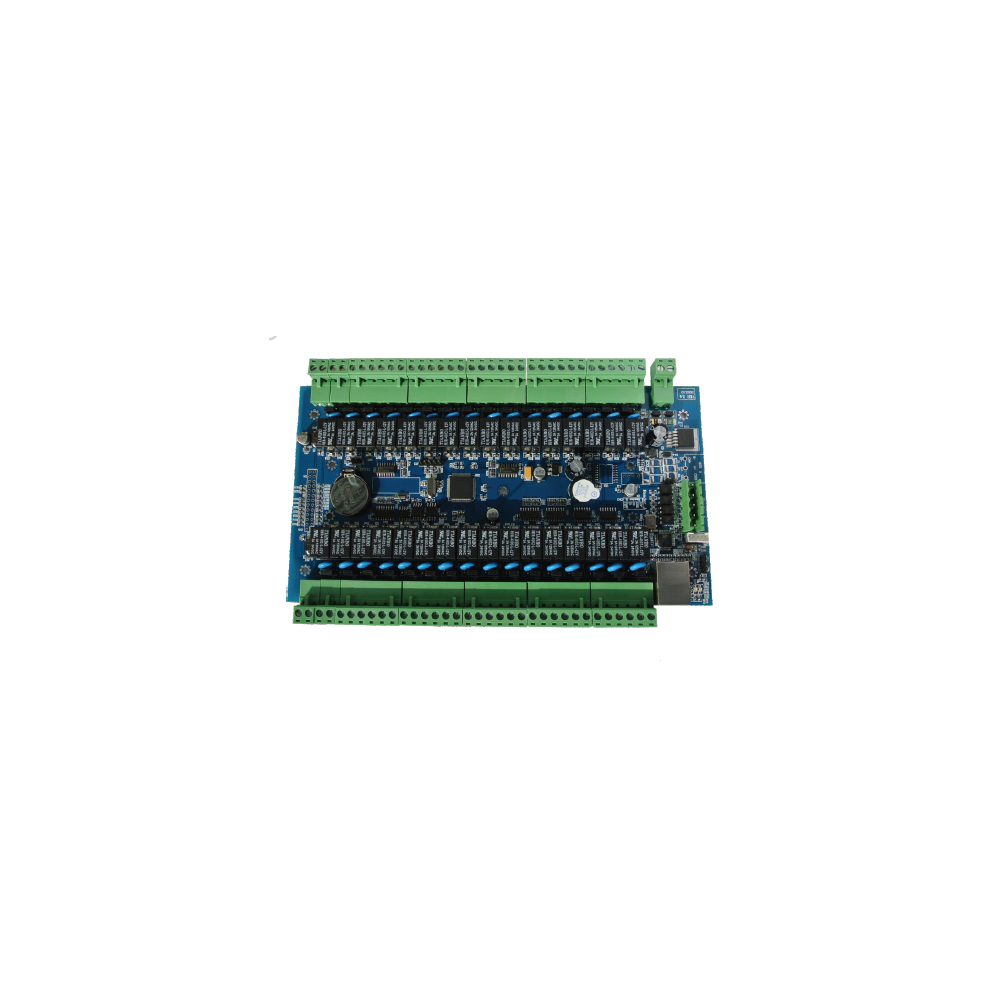

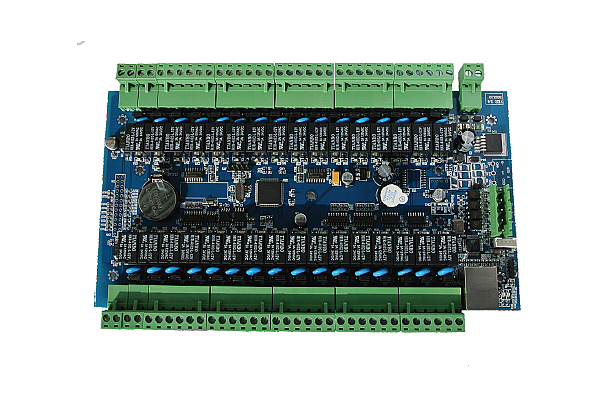

32 Floors Elevator Controller

32 Floors Elevator Controller
VV-EC32DP-2WA1
  • High performance 32bit CPU processor
  • Standard 10/100M TCP/IP communication
  • Big capacity flash chip,120,000 card holders, 200,00 record
  • Each panel support 32 outputs, & support NO/NC & we can change NO/NC through software or jumper
  • Each panel can connect a expansion panel to reach 64 outputs
  • Connect an expansion panel to realize visitor function
  • Each door’s time zone has as many as 8 groups, and each group can choose different verification methods
  • Support 16 floor direct access mode and directly reach 32 floors by using expansion panel
  • Support multi verifications: card, card+PSW, PSW, double cards, free pass, first card
  • Support remotely open or close door with special color indication
  • Support emergency door release input to realize re alarm linkage or elevator’s normal usage if emergency
  • Support 1st floor arrival signal output to activate the elevator button
  • Support many kinds of events alarm output like invalid card, invalid time,door alarm, or door open overtime
  • Elevator controller can connect to wiegand reader with wiegand protocol like 26, 34,36
  • Support the setting of each card’s valid time
  • All of access control devices support Rs485, TCP/IP controller’s mixing installation
  • Support 3 kinds of languages, and add other language by ourselves
  • Real time color to show each point’s open or close status
  • Support full screen event showing and show vivid pic. and support synthesized voice
  • Support 2 kinds of database: MS Access & MS SQL server, the default is MS Access
  • Controller supports 32/16 floors with 2 readers supporting 26/34-bit Wiegand and RS485 reader types
  • 32 outputs with card holder capacity 12,000 and log events capacity 200,000
  • 32-bit 400MHz CPU with 32M RAM and 128M flash memory
  • Communication via TCP/IP and RS-485
  • Power 12V at >3mA with power consumption 5W
  • Operating temperature 0–60°C and operating humidity 10% to 95%
  • Overall dimensions 218 × 136 × 32mm, weight 450g, certified CE, FCC and RoHS
