Vantage Security

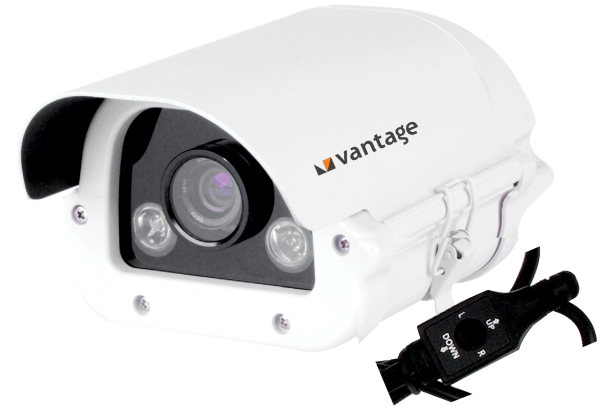

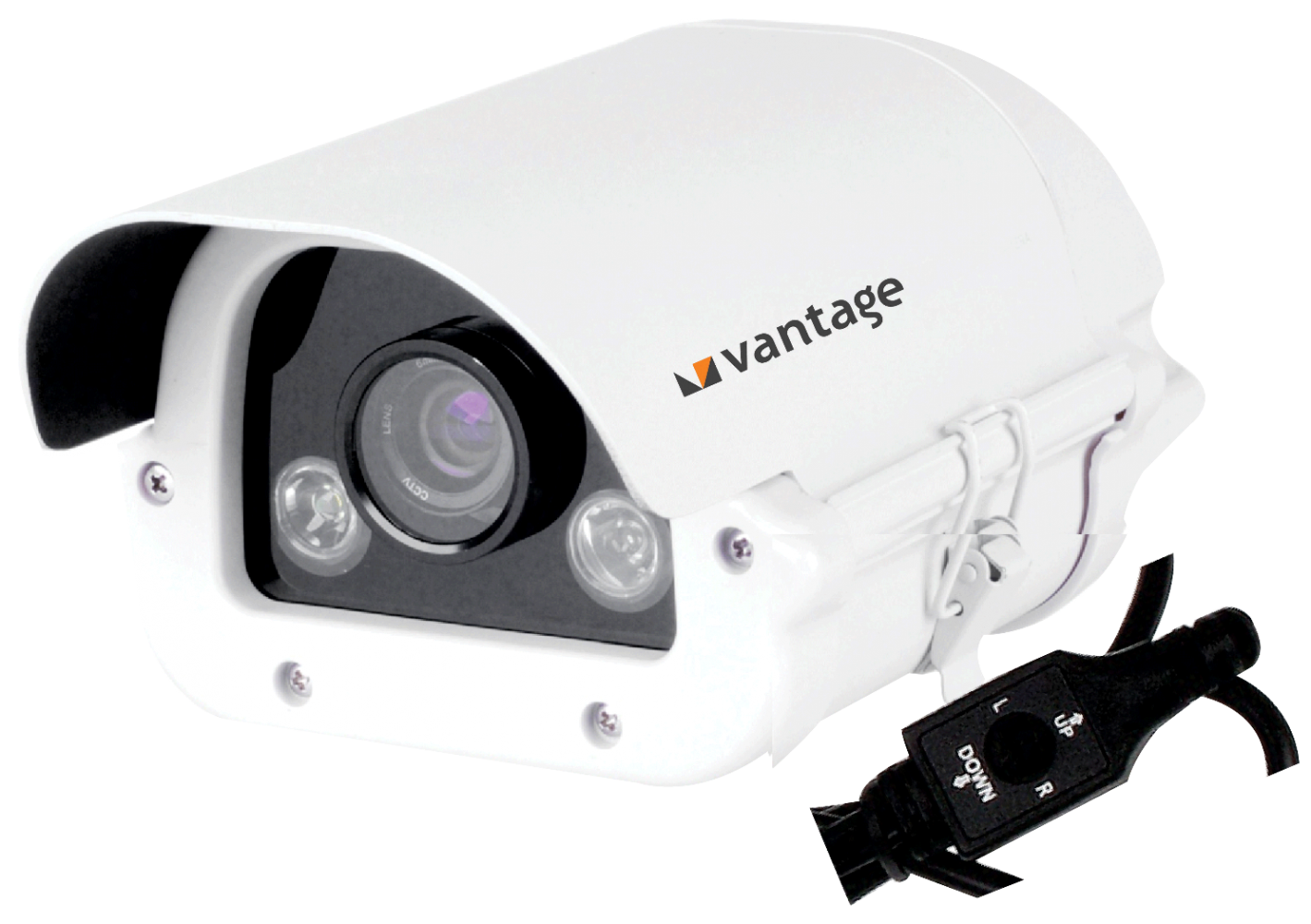

VV-AC2MA2B-SN27LPS2  2MP IR Night Vision Licence Plate Recognition Camera


  • Full high defnition 2MP (1920 x 1080) resolution
  • Back Light compensation (BLC) Supported
  • Inbuilt Motion Detection Supported
  • High Light compensation (HLC) Supported
  • Automatic White Balance
  • Privacy Masking Supported
  • I P 66 Weather proof outdoor enclosure
Parameter Specifications
Image Sensor 1/3" Progressive Scan Sensor
Signal System PAL/NTSC
Effective Pixels 1920 (H) × 1080 (V)
Frequency 60Hz (NTSC)/50Hz (PAL)
Horizontal Resolution 2MP
Minimum Illumination  Color : 0.01Lux @ F1.2, B/W 0.0015 lux @ F1.4, B&W: 0 Lux at IR on
Signal to Noise  > 62 Db
Gain Control  Auto/Manual
White Balance  Auto/Manual
DNR Inbuilt 3D DNR (Digital Noise Reduction) circuit
Auto Iris DC Drive
Gamma Correction 0.45
Sync System Internal
Lens Type 8mm IR corrected Lens
Lens Mount  M12
Focus Fixed
Zoom Fixed
Day/Night Functionality
Day & Night  True Day & Night with ICR
IR Cut  High performance Mechanical IR Cut Filter with auto switch
IR Source  Inbuilt 2 X 4th Generation White Light Source Chip Array
IR Range  Up to 30 Mtrs
IR Life 40000 Operation Hours
OSD Menu Supported
OSD Joystick Supported
Camera ID On/Off
Privacy Masking Up to 4 zone supported
Motion Detection Up to 4 zone supported
BLC Supported
HLC Supported
Video Adjustment Supported
Electronic Shutter Speed 1/50 - 1/100000
Video Output 1.0 Vp-p, 75 Ohm Composite CVBS
Power Input Standard DC Jack
Power Requirement DC 12V (±10%)
Power Consumption Max 9W
Enclosure IP66 Weather proof outdoor enclosure
Mounting Bracket External Mounting Bracket
Operating Temperature -20°C to +60°C
Operating Humidity 95% or less (non-condensing)
Color  White
Dimensions  215 X 138 X 105mm
Weight  850g
Certifications  CE, FCC, RoHS
1/3" Progressive Scan Sensor
Array IR
Auto White Balance
Motion Detection
On Screen Display
