CCTV Surveillance Cameras

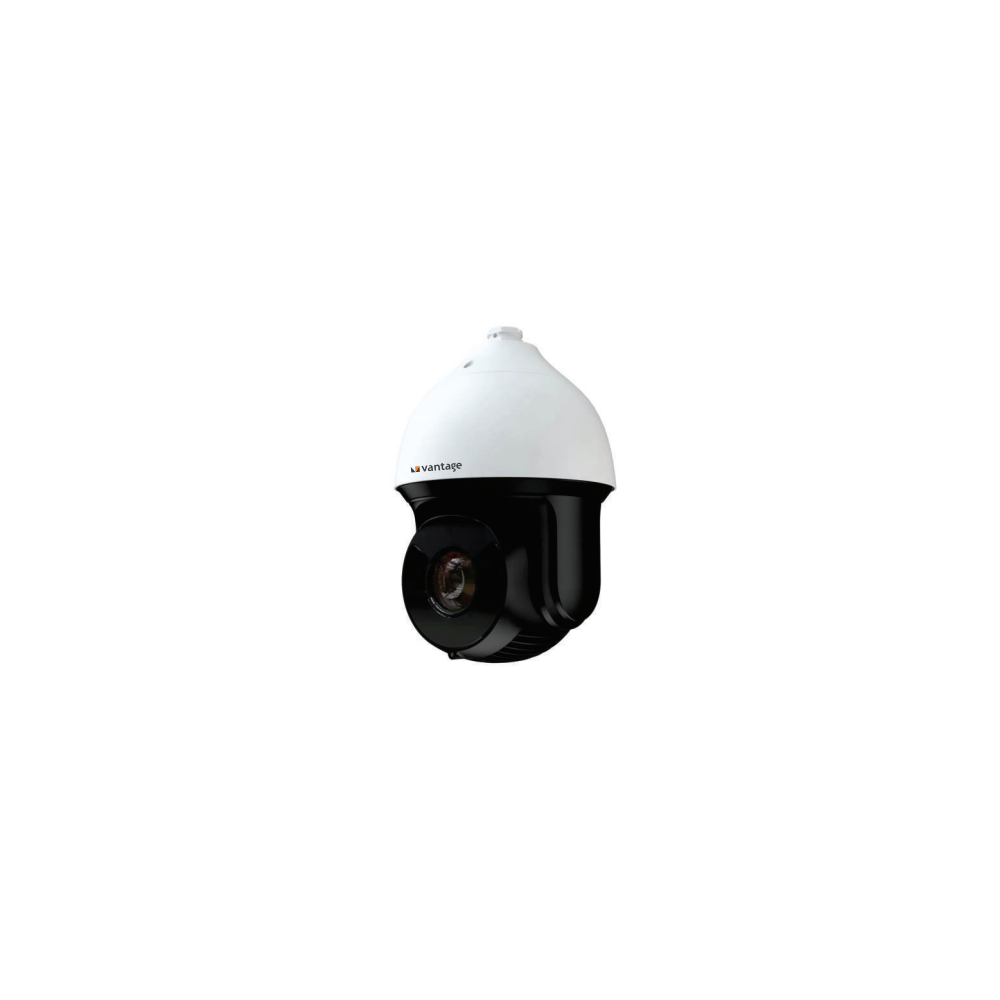

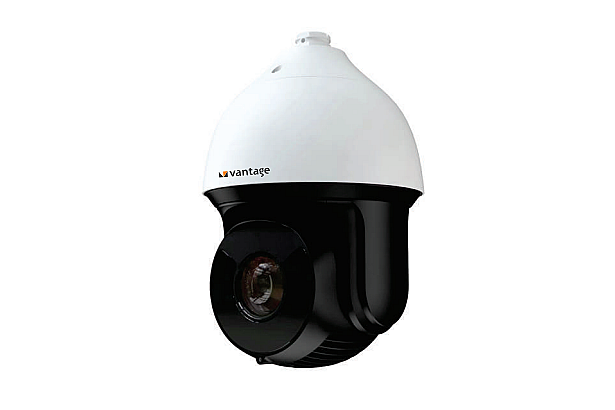

2MP IP Starlight PTZ Camera with 32x Optical Zoom and Smart AI

2MP IP Starlight PTZ Camera with 32x Optical Zoom and Smart AI
VP-NC9802P-AZ32IR7T1
Image of '1/2.8'' CMOS Progressive Scan Sensor' feature Image of '360° Endless Panning' feature Image of 'Backlight Compensation' feature Image of 'FULL HD' feature Image of 'Privacy Zone' feature
  • Full HD 2MP (1920×1080) resolution
  • 1/2.8" Progressive Scan CMOS Sensor
  • Inbuilt 120dB WDR, 3D DNR, HLC, BLC & Defog functions
  • Support H.265/H.264 video compression
  • 32x optical zoom, 16x digital zoom
  • 360° endless panning
  • Inbuilt up to 200 mtrs IR range
  • IP67 Weather proof outdoor enclosure
  • Sensor and resolution: 1/2.8" Progressive Scan CMOS, Full HD 2MP at 1920×1080, 25/30fps on the main stream.
  • Starlight low-light performance: Minimum illumination of 0.005 lux (colour) and 0.001 lux (B/W), down to 0 lux with IR active.
  • Optics: 4.5 mm to 144 mm motorized lens with 32x optical zoom plus 16x digital zoom, aperture range F1.65 to F4.4.
  • IR night vision: Built-in 10x high-performance IR LEDs delivering up to 200 metres range, with True Day and Night switching via mechanical IR-cut filter.
  • PTZ movement: 360° endless pan, tilt from -25° to 180° with auto flip, 300 presets, 8 cruises (up to 16 presets each), and 4 tracks.
  • Image enhancement: 120dB WDR, 3D DNR, HLC, BLC and Defog for clear footage in high-contrast and low-visibility conditions.
  • Video compression: H.265/H.264/MJPEG with triple-stream output and VBR/CBR bandwidth control.
  • Smart analytics: Intrusion detection, line crossing, region entrance/exit, unattended baggage and object removal detection, scene change detection, auto-tracking of humans and vehicles, plus face recognition (up to 15 faces per second).
  • Connectivity and storage: ONVIF-compliant, RJ45 10M/100M Ethernet with PoE++ (802.3bt), micro SD/SDHC/SDXC up to 256GB, 16 concurrent users, up to 6 live channels, RS485 (PELCO-P/D), plus 2CH alarm in/out.
  • Build and protection: IP67 weatherproof aluminum-alloy enclosure, 6,000V lightning protection, operating range -50°C to +65°C. Weight approx. 6.0 kg.
