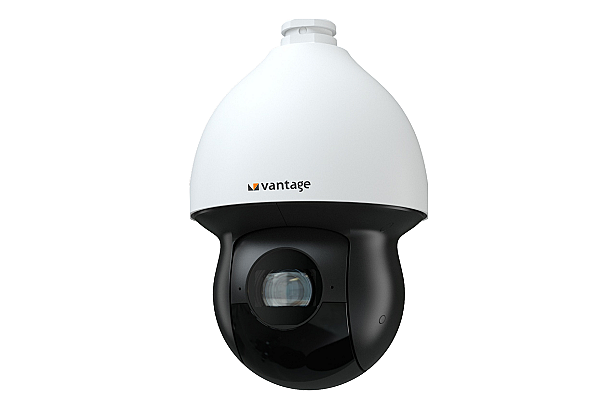

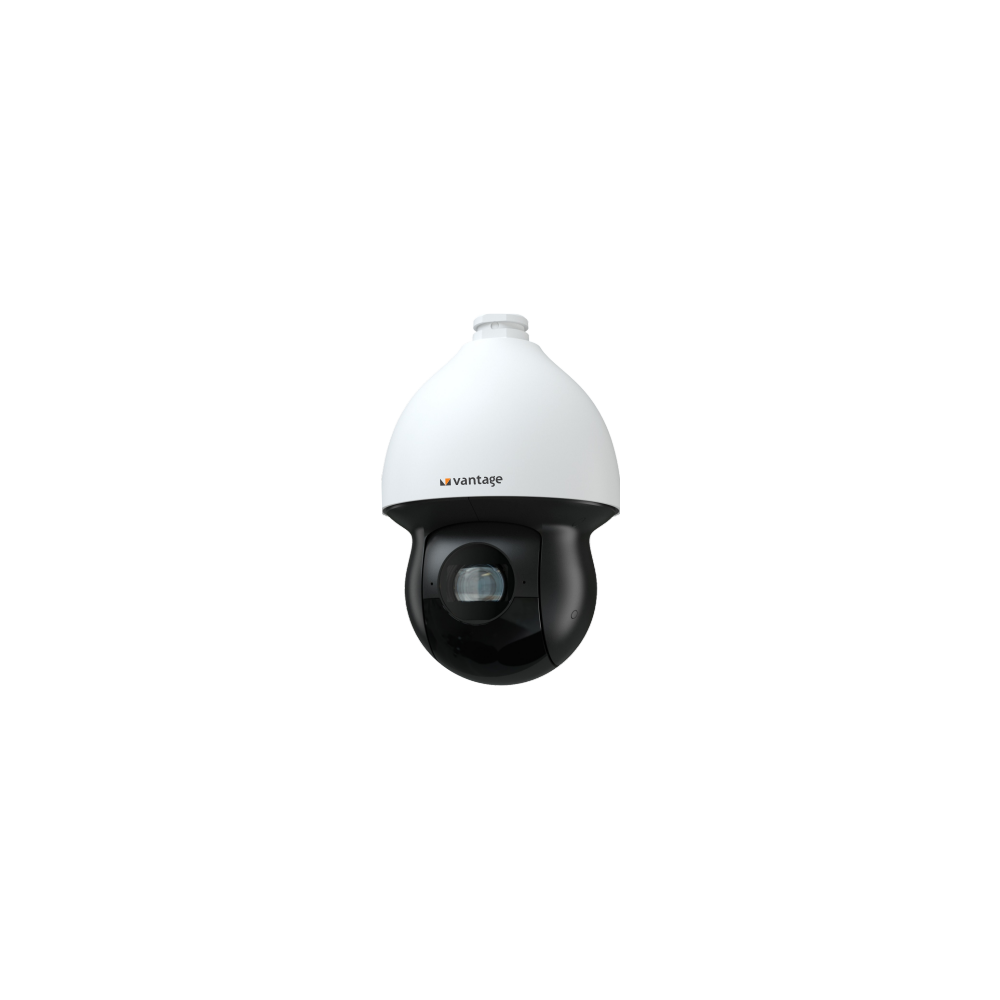

2MP IP PTZ Camera with 40x Optical Zoom and Smart AI

2MP IP PTZ Camera with 40x Optical Zoom and Smart AI
VP-NC9812P-AZ40IR7T1
Image of '1/2.8'' CMOS Progressive Scan Sensor' feature Image of '360° Endless Panning' feature Image of 'Backlight Compensation' feature Image of 'FULL HD' feature Image of 'Privacy Zone' feature
  • Full HD 2MP (1920×1080) resolution
  • 1/2.8" Progressive Scan CMOS Sensor
  • Inbuilt 128dB WDR/HDR, 3D DNR, HLC, BLC & OSD functions
  • Support H.265/H.265+/H.264+/H.264 video compression
  • 40x Optical zoom
  • 360° endless panning
  • Inbuilt IR LEDs for 400 mtrs IR range
  • IP67 Weather proof outdoor enclosure
  • Sensor and resolution: 1/2.8" Progressive Scan CMOS, Full HD 2MP at 1920×1080, supporting 50/60fps on the main stream.
  • Optics: 4.5 mm to 180 mm motorized lens with 40x optical zoom plus 8x digital zoom, aperture range F1.2 to F3.5.
  • IR night vision: Built-in high-performance IR LEDs delivering up to 400 metres range, with true day and night switching via a removable IR-cut filter.
  • PTZ movement: 360° endless pan, tilt from -25° to 155° with auto flip, 300 presets, 8 patrols (up to 16 presets each), and 4 tour patterns.
  • Image enhancement: 128 dB WDR/HDR, 3D DNR, HLC, BLC, and OSD for clear footage in high-contrast and low-light scenes.
  • Video compression: H.265+/H.265/H.264+/H.264/MJPEG with triple-stream output and a bitrate from 64Kbps to 16Mbps.
  • Smart analytics: Tripwire, illegal intrusion detection, region entrance/exit detection, auto-tracking of humans and vehicles, plus face detection and comparison (up to 17 faces).
  • Low-light performance: Minimum illumination of 0.001 Lux (colour) and 0.0002 Lux (B/W), down to 0 Lux with IR active.
  • Connectivity and storage: ONVIF-compliant, RJ45 10M/100M Ethernet with PoE+ support, micro SD/SDHC/SDXC onboard storage up to 256GB, and 16 concurrent users.
  • Build and protection: IP67 weatherproof aluminium-alloy enclosure, IK10 impact rating, 6,000V lightning protection, operating range -40°C to +65°C, with active defrost and water removal. Weight approx. 2.9 kg.
