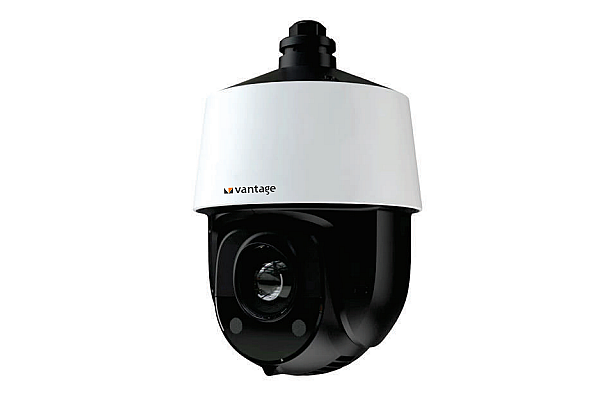

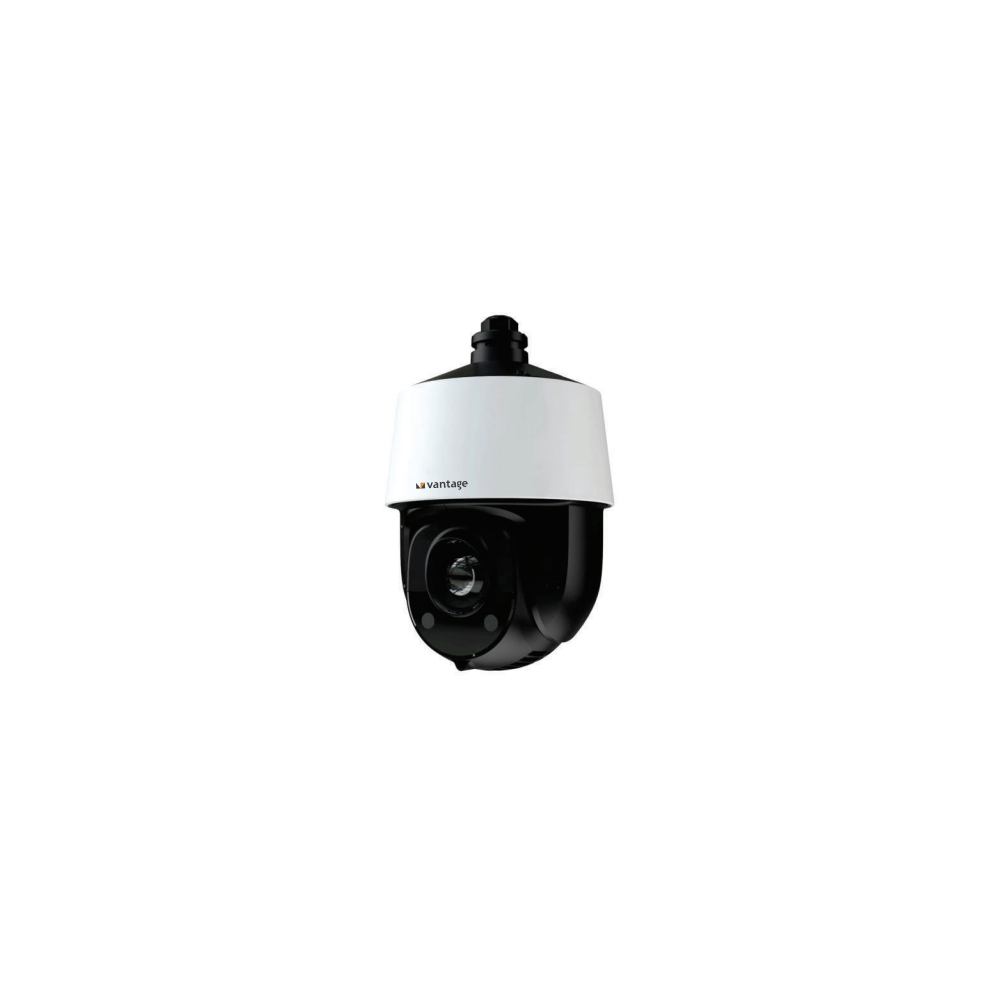

2MP IP PTZ Camera with 25x Optical Zoom and Smart AI

2MP IP PTZ Camera with 25x Optical Zoom and Smart AI
VP-NC9792P-AZ25IR6T1
Image of '1/2.8'' CMOS Progressive Scan Sensor' feature Image of '360° Endless Panning' feature Image of 'Backlight Compensation' feature Image of 'FULL HD' feature Image of 'Privacy Zone' feature
  • Full HD 2MP (1920×1080) resolution
  • 1/2.8" Progressive Scan CMOS Sensor
  • Inbuilt 3D DNR, HLC, BLC & 120dB HDR functions
  • Support H.265+/H.265/H.264+/H.264/MJPEG video compression
  • 25x Optical zoom
  • 360° endless panning
  • Inbuilt IR LEDs for 300 mtrs IR range
  • IP67 Weather proof outdoor enclosure
  • Sensor and resolution: 1/2.8" Progressive Scan CMOS, Full HD 2MP at 1920×1080, 25/30fps on the main stream.
  • Optics: 4.8mm to 120mm motorized lens with 25x optical zoom plus 16x digital zoom and auto focus, maximum aperture F1.6.
  • IR night vision: Built-in high-performance IR LEDs delivering up to 300 metres range, with True Day and Night switching via mechanical IR-cut filter.
  • Low-light performance: Minimum illumination of 0.00125 Lux (colour) and 0.00025 Lux (B/W), down to 0 Lux with IR active.
  • PTZ movement: 360° endless pan, tilt from -10° to 90° with auto flip, 360 presets, 8 patrols (up to 16 presets each), and 4 tour patterns.
  • Image enhancement: 120dB HDR, 3D DNR, HLC, BLC and OSD for clear footage in high-contrast and low-light scenes.
  • Video compression: H.265+/H.265/H.264+/H.264/MJPEG with triple-stream output and bitrate from 64Kbps to 16Mbps.
  • Smart analytics: Tripwire, bi-directional tripwire, intrusion detection, region entrance/exit detection, vehicle detection and tracking, auto-tracking of humans and vehicles, plus face detection, capture and comparison (up to 17 faces per scene).
  • Connectivity and storage: ONVIF (G/S/T) compliant, RJ45 10M/100M Ethernet with PoE+ (802.3at), micro SD onboard storage up to 256GB, 16 concurrent users, RS485 (PELCO-P/D), plus 1CH alarm in/out.
  • Build and protection: IP66 weatherproof enclosure with anti-rain lotus-coating glass, IK10 impact rating, 6,000V lightning protection, built-in heater/fan with frost and fog removal, operating range -40°C to +65°C. Weight approx. 2.1kg.
