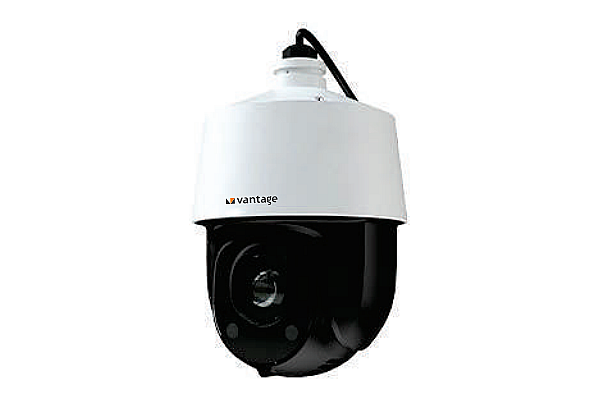

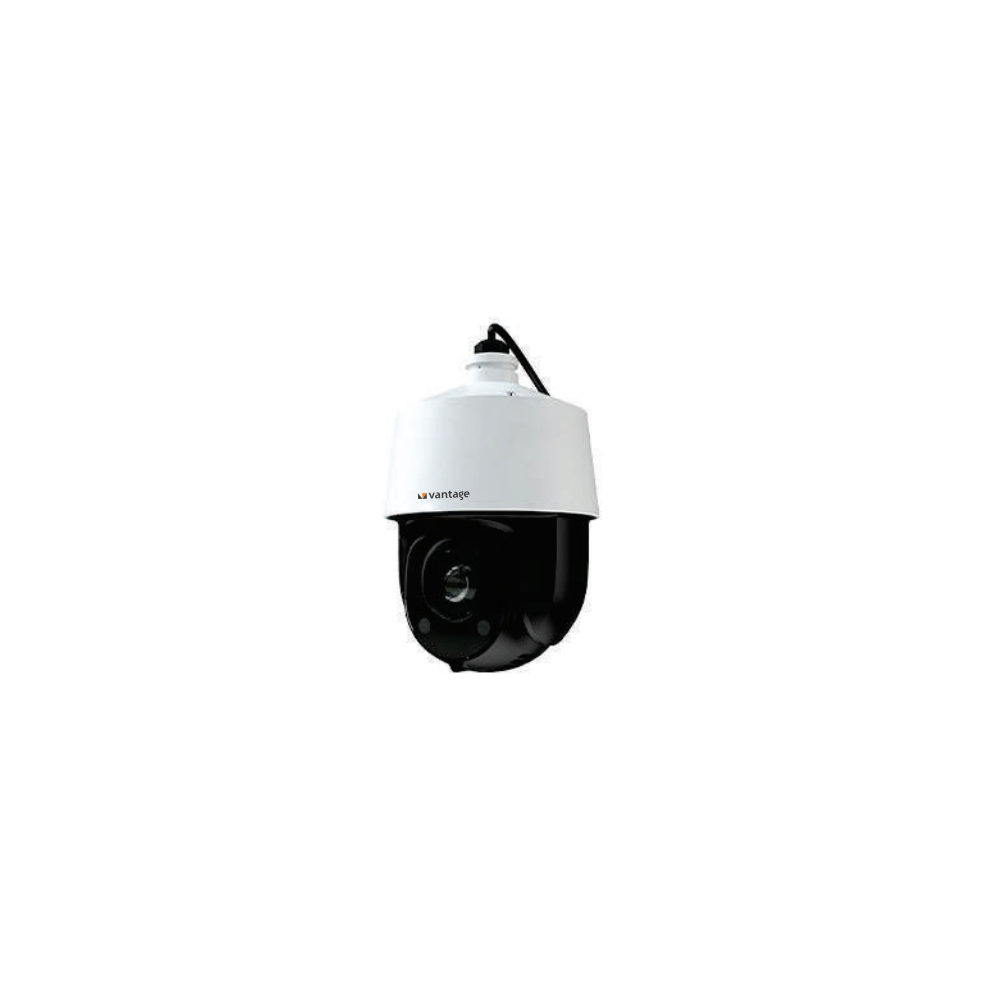

2MP IP PTZ Camera with 15x Optical Zoom and Smart AI

2MP IP PTZ Camera with 15x Optical Zoom and Smart AI
VP-NC9792P-AZ15IR6T1
Image of '1/2.8'' CMOS Progressive Scan Sensor' feature Image of '120db WDR' feature Image of 'Defog' feature Image of 'FULL HD' feature Image of 'IP66' feature
  • Full HD 2MP (1920×1080) resolution
  • 1/2.8" Progressive Scan CMOS Sensor
  • Inbuilt 120dB WDR, 3D DNR, HLC, BLC & Defog functions
  • Support H.265/H.264 video compression
  • 15x Optical zoom
  • 360° endless panning
  • Inbuilt IR LEDs for 150 mtrs IR range
  • IP66 Weather proof outdoor enclosure
  • Sensor and resolution: 1/2.8" Progressive Scan CMOS, Full HD 2MP at 1920×1080, 25/30fps on the main stream.
  • Optics: 5mm to 75mm motorized lens with 15x optical zoom plus 16x digital zoom and auto focus, aperture range F1.6 to F2.8.
  • IR night vision: Built-in high-performance IR LEDs delivering up to 150 metres range, with True Day and Night switching via mechanical IR-cut filter.
  • Low-light performance: Minimum illumination of 0.0051 Lux (colour) and 0.001 Lux (B/W), down to 0 Lux with IR active.
  • PTZ movement: 360° endless pan, tilt from -5° to 90° with auto flip, 360 presets, 8 patrols (up to 16 presets each), and 4 tour patterns.
  • Image enhancement: 120dB WDR, 3D DNR, HLC, BLC, EIS and electronic Defog for clear footage in high-contrast and low-visibility conditions.
  • Video compression: H.265/H.264/MJPEG with triple-stream output and VBR/CBR bandwidth control.
  • Smart analytics: Intrusion detection, line crossing, region entrance/exit detection, object removal, scene change, video blur and colour cast detection, auto-tracking of humans and vehicles, plus face recognition (up to 30 faces per second).
  • Connectivity and storage: ONVIF-compliant, RJ45 10M/100M Ethernet with PoE+ (802.3at), micro SD/SDHC/SDXC onboard storage up to 256GB, 16 concurrent users, up to 6 live channels, plus RS485 (PELCO-P/D).
  • Build and protection: IP66 weatherproof enclosure, 4,000V lightning protection, operating range -30°C to +55°C. Weight approx. 2.1kg.
