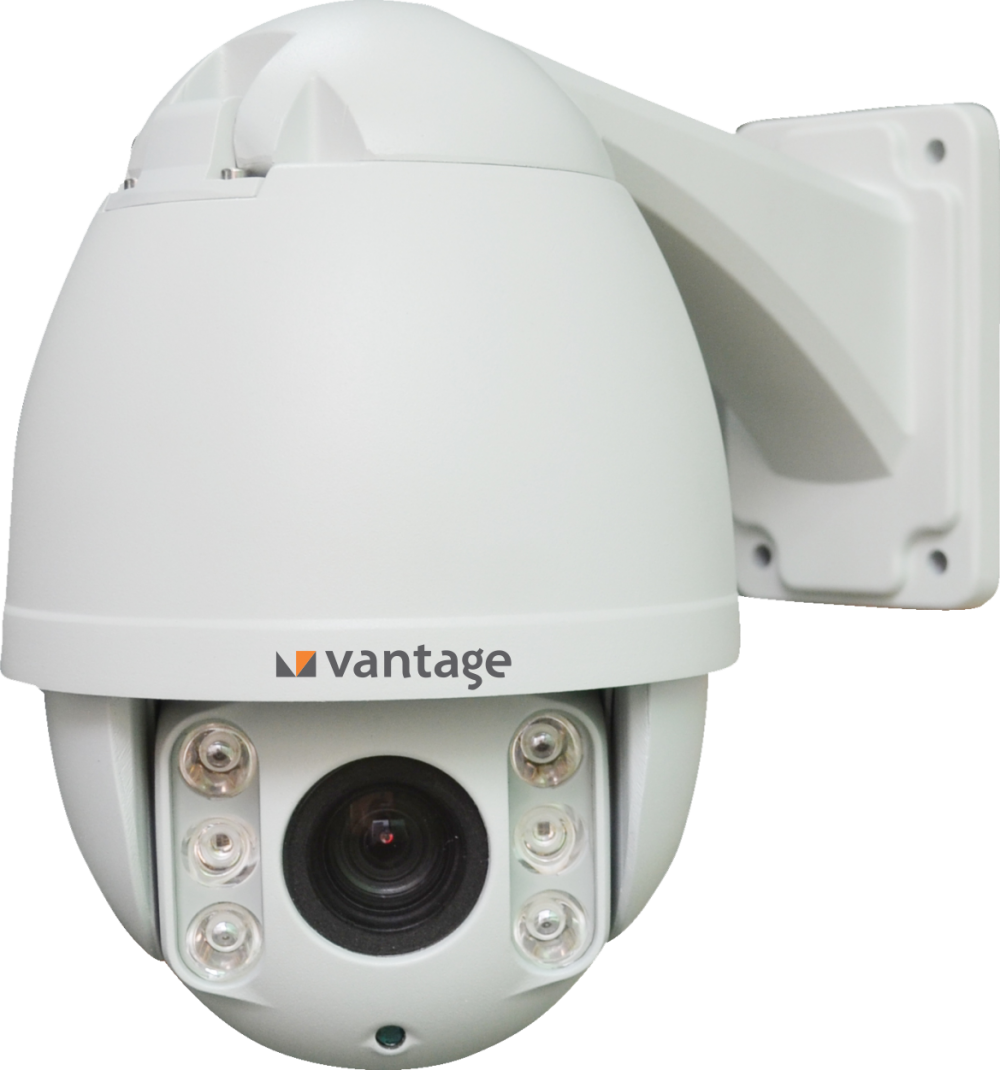

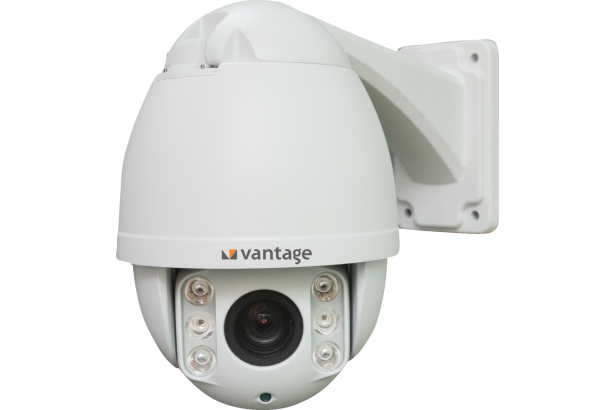

VV-AC2M10P-3S33IRB1 2MP, 10X Array IR Night Vision Outdoor PTZ Camera
LOADING IMAGES
Downloads:
- 2 megapixel Full HD 1080p resolution
- 1/3” Sony Exmor Progressive Scan Sensor
- Powerful 10x Optical zoom
- 360° endless panning
- Inbuilt Array IR up to 60 mtrs IR range
- Inbuilt 3D DNR & BLC functions
- Supports presets/pattern/patrol/pan scan
- IP66 Weather proof Outdoor Enclosure with Double Layer
Metal Body Construction
| Parameter | Specifications |
| Camera | |
| Image Sensor | 1/3” Sony Exmor Progressive Scan Sensor |
| Signal System | PAL/NTSC |
| Effective Pixels | 1920 (H) × 1080 (V) |
| Frequency | 50 Hz (PAL) / 60 Hz (NTSC) |
| Horizontal Resolution | 2 Megapixel |
| Minimum Illumination | Color : 0.01Lux @ F1.2, 0.015 lux @ F1.4, B&W: 0 Lux at IR on |
| Signal to Noise | > 62 dB |
| Gain Control | Auto / Manual / Off |
| White Balance | Auto/ Manual / Indoor/ Outdoor |
| DNR | Inbuilt 3D DNR (Digital Noise Reduction) circuit |
| Auto Iris | Auto / Manual |
| Gamma Correction | 0.45 |
| Sync System | Internal |
| Lens | |
| Lens Type | 5.1 to 51mm (10x Optical Zoom) |
| Angle of View | H 47°(W )~ 5.3°(T) ; V35.6°(W)~ 3.96°(T) |
| Focus | Auto Focus/ Manual Focus |
| Zoom | 10x Optical Zoom |
| Zoom Speed | Approx 3s (Optical Wide-Tele) |
| Day/Night Functionality | |
| Day & Night | True Day & Night with ICR |
| IR Cut | High performance Mechanical IR Cut Filter with auto switch |
| IR Source | Inbuilt 6 x high performance High Power Array IR LEDs |
| IR Range | Up to 60 Mtrs |
| IR Life | 40000 Operation Hours |
| Pan-Tilt | |
| Pan Angle | 360° endless pan rotation |
| Tilt Angle | 0° to 93° (Auto Flip) |
| Pan Speed | 0.1° ~ 45°/s |
| Tilt Speed | 0.1° ~ 30°/s |
| Presets 220 | 220 |
| Preset Accuracy | ±0.1° |
| Patrol | 3 Patrols, up to 16 presets per patrol |
| PTZ position display | Supported |
| Operational Features | |
| OSD Menu | Supported |
| Camera ID | On/Off |
| Motion Detection | Supported, 8 zone configuration |
| BLC | Auto |
| Video Adjustment | Supported |
| WDR | D-WDR |
| Electronic Shutter Speed | 1/50 ~ 1/10000s |
| Protocols | PELCO-P, PELCO-D, Multi protocol support |
| Baud Rate | 2400/4800/9600bps |
| Interface | |
| Video Output | 1 BNC AHD Video Output |
| Power Input | Standard DC Jack / 2Pin Wired Terminal |
| Data Communication | RS-485 |
| Electrical | |
| Power Requirement (± 10%) | DC 12V (± 10%) |
| Power Consumption | Max 22 W with IR on |
| Environmental | |
| Enclosure | IP 66 Weather proof outdoor enclosure |
| Protection | TVS 4,000V lightning protection, surge protection and voltage transient protection |
| Mounting bracket | External Mounting bracket included |
| Operating Temperature | -40°C to +65°C |
| Operating Humidity | 95% or less (non-condensing) |
| Mechanical | |
| Color | White |
| Dimension | 206 x 141 mm |
| Certifications | |
| Certifications | CE, FCC, RoHS |
