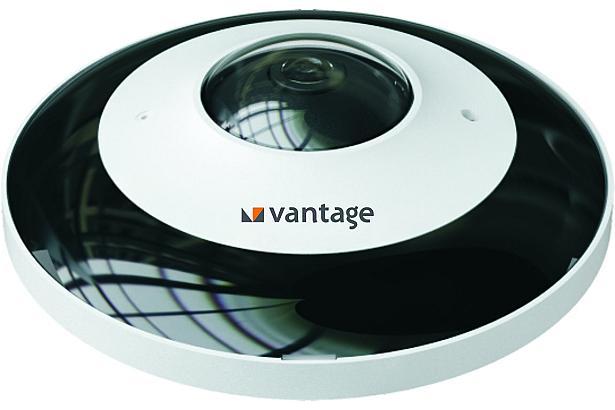

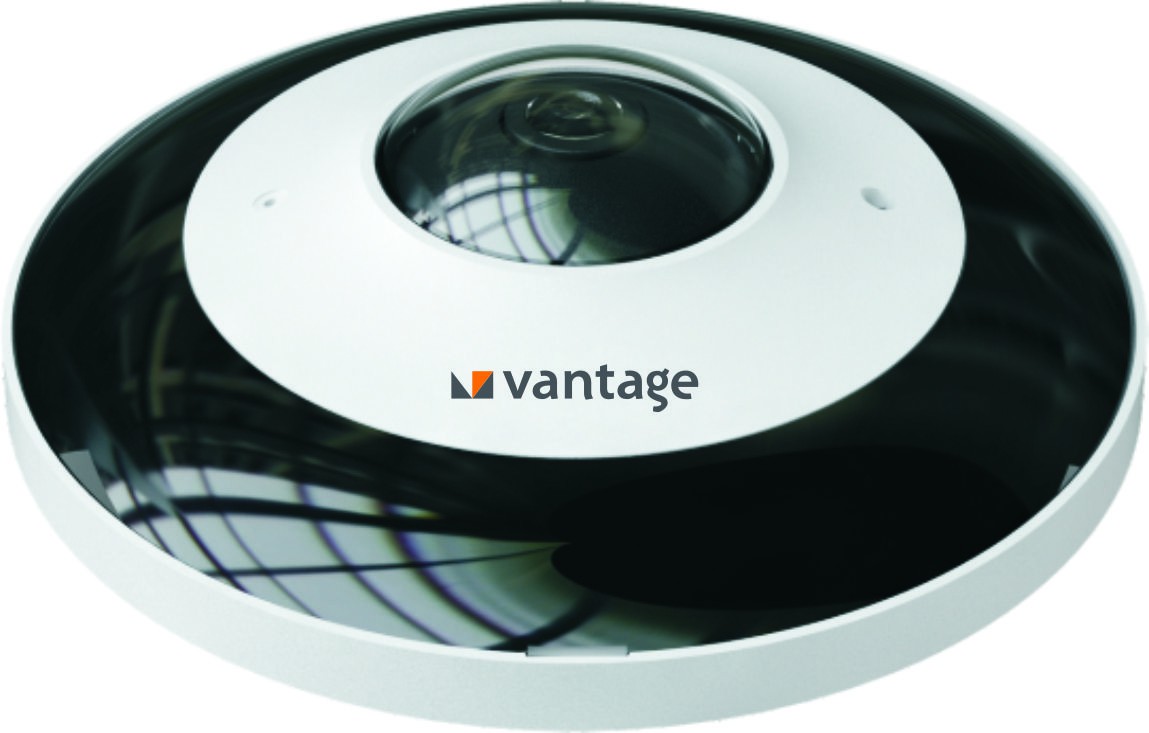

VP-NC4486PD-AFIRT1  180° INDOOR CAMERA

Downloads:

  • Ultra High Definition 6MP (2160X2160) resolution
  • High performance IR Cut filter
  • Inbuilt DWDR, HLC, BLC, 2D /3D DNR, ROI functions
  • 15M IR night view distance
  • Support P2P
  • IP66 Weather Proof Indoor Enclosure
Parameter Specifications
Camera
Image sensor 1/2.9" Progressive Scan CMOS Sensor
Signal System PAL/NTSC
Effective Pixels 2160 (H) × 2160 (V)
Electronic Shutter Speed 1 / 25 s ~ 1 / 100000 s
Gain Control Auto
White Balance Auto
Signal to Noise > 52 dB

Lens
Lens Type Lens 1.07mm @F2.5, Angle of view 180° (wall mounting),
360° (ceiling mounting)

Day/Night
Functionality

Day & Night Up to 15 mtr
IR Range H.265 / H.264 / MJPEG

Compression
Video compression 265 / H.264 / MJPEG
H.265 codec profile Main Profile
Audio Compression G.711A /G.711Mu
Audio Bit Rate 8Kbps ~ 48 Kbps
Video Bit Rate 64 Kbps ~ 16Mbps

Resolution and
Frame Rate

Max. Resolution 2160 × 2160
Main Stream
Max. Frame Rate
Fisheye+panorama+3 PTZ
50Hz: 25fps@(2160 × 2160/1920×1920/1440×1440), 25fps@(1920 ×
1080), 25fps@(960× 540)*3
60Hz: 30fps@(2160 × 2160/1920×1920/1440×1440), 30fps@(1920 ×
1080), 30fps@(960× 540)*3
Fisheye+ 4 PTZ
50Hz: 25fps@(2160 × 2160/1920×1920/1440×1440), 25fps@(960×
540)*4
60Hz: 30fps@(2160 × 2160/1920×1920/1440×1440), 30fps@(960×
540)*4
Operational
Features

Wide Dynamic Range DWDR
Backlight compensation Supported
DNR Inbuilt 2D / 3D DNR (Digital Noise Reduction) circuit
Image settings ROI, Saturation, Brightness, Chroma, Contrast, Wide Dynamic,
Sharpen, NR,etc. adjustable through client software or web browser
HLC Supported
ROI Supported
Security One-key reset, password protection,
Onboard Storage Built-in Micro SD / SDHC / SDXC card slot, up to 128 GB
Smart Alarm Motion alarm, sensor alarm
Remote Monitoring IE browsing,CMS remote control

Network & Remote
Monitoring

Protocols TCP / IP, UDP, DHCP, NTP, RTSP, PPPoE, DDNS, SMTP, FTP
System compatibility ONVIF
CMS Full function CMS ( Central monitoring software)
Mobile Client Application Supports android and iOS APP for Smart phone and tablets
Bandwidth control CBR / VBR

Interface
Ethernet 1 RJ45 10/100 Ethernet port
Power Input Standard DC Jack
Alarm Input/Output 1/1 CH
Audio Input/Output MIC IN × 1, MIC OUT × 1
Video Output CVBS video output ( BNC × 1 )
Rs485 Supported

Electrical
Power Requirement 12 VDC, PoE (802.3af)
Power Consumption <12W

Environmental
Enclosure IP66 Indoor Enclosure
Operating Temperature -20°C to + 50°C
Operating Humidity 90% or less (non-condensing)

Mechanical
Dimensions Φ 39 × 130 mm
Weight 432g

Certifications
Certifications UL, CE, FCC, RoHS
1/2.9'' Progressive Scan Sensor
180°
Digital WDR
e-PTZ
SD Card
