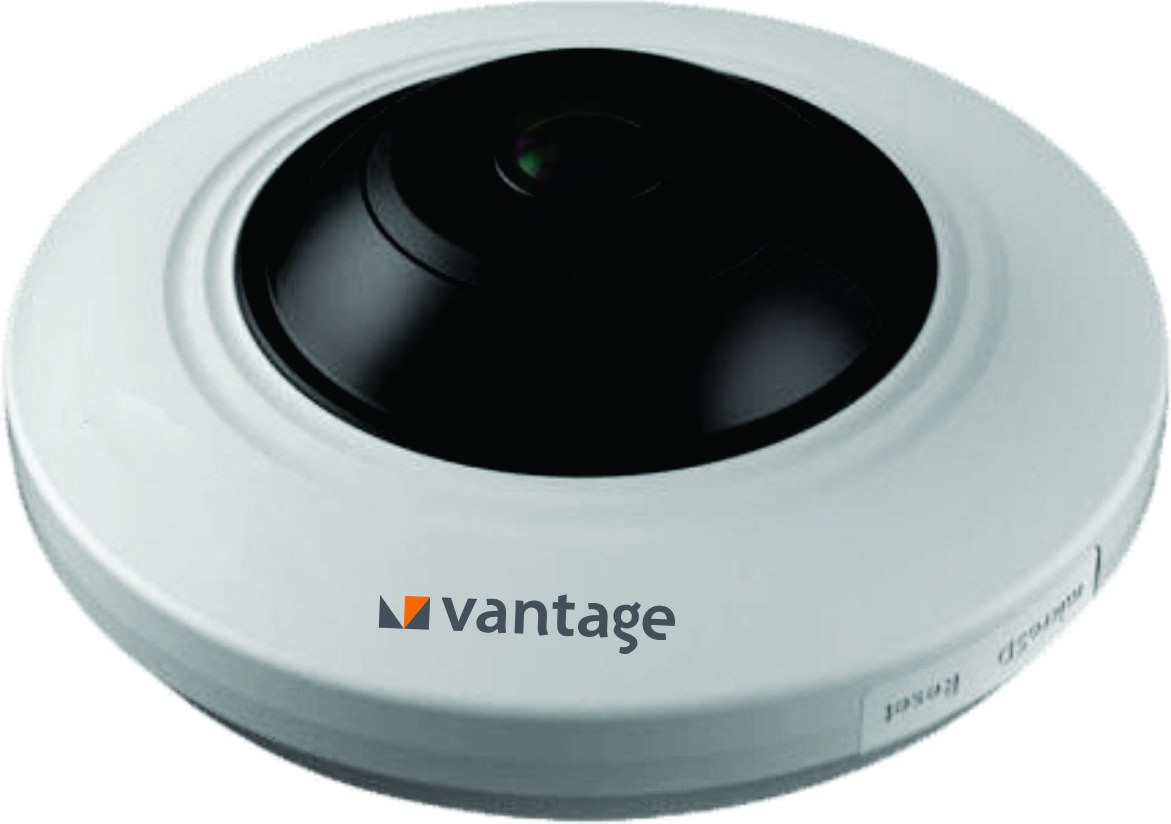

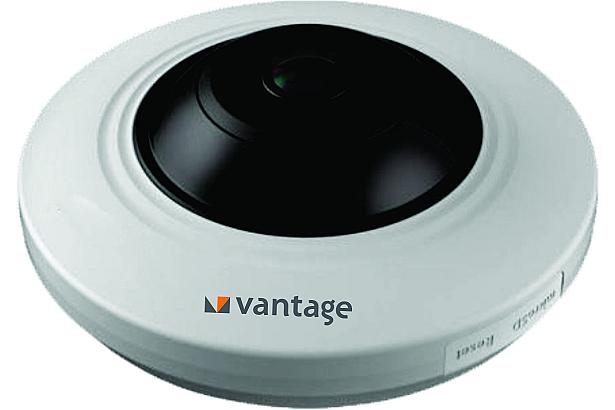

180° INDOOR CAMERA
- High Definition 5MP (2560X1920) resolution
- High performance IR Cut filter
- Inbuilt 120dB True WDR , ROI,3D DNR functions
- Megapixel lens 1.05 mm @F2.2, angle of view: 180°
- Multiple ePTZ streams with preset and patrol function
- Support on-board storage, up to 128 G
|
Parameter |
Specifications |
|
Camera |
|
|
Image sensor |
1/2.5" Progressive Scan CMOS Sensor |
|
Signal System |
PAL/NTSC |
|
Effective Pixels |
2560 (H) × 1920 (V) |
|
Minimum Illumination |
Color : 0.01Lux @ (F1.2, AGC ON), |
|
Electronic Shutter Speed |
1/3 s to 1/100,000 s |
|
Gain Control |
Auto |
|
White Balance |
Auto |
|
Signal to Noise |
> 52 dB |
|
|
|
|
Lens |
|
|
Lens Type |
1.05mm @F2.2, Angle of view 180° |
|
Lens mount |
M12 |
|
IR Range |
Up to 8mtr |
|
|
|
|
Compression |
|
|
Video compression |
H.265+/ H.265/H.264+/ H.264/MJPEG |
|
H.264 codec profile |
Main Profile/High Profile |
|
Video Bit Rate |
32 Kbps ~ 16Mbps |
|
Audio compression |
G.711/G.722.1/G.726/MP2L2/PCM (Optional) |
|
Audio Bit Rate |
64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2) |
|
|
|
|
Resolution and |
|
|
Max. Resolution |
2560 × 1920 |
|
Main Stream |
50Hz: 25fps (2560 × 1920, 2048 × 1536, 1280 × 960) |
|
Sub stream |
50Hz: 25fps (352× 288, 704 × 576) |
|
|
|
|
Operational |
|
|
Wide Dynamic Range |
120dB |
|
Backlight |
Supported |
|
ROI |
Support 1 fixed region for main stream and sub stream |
|
Defog |
Supported |
|
DNR |
Inbuilt 3D DNR (Digital Noise Reduction) circuit |
|
Image settings |
Brightness, saturation, contrast, sharpness, exposure zone, exposure |
|
Security |
One-key reset, anti-flicker, password protection, privacy mask, IP |
|
Onboard Storage |
Built-in Micro SD / SDHC / SDXC card slot, up to 128 GB |
|
Alarm trigger |
Video tampering alarm, HDD full, HDD error, network disconnected, |
|
Lens Distortion Correction |
Supported |
|
Smart Analytics |
Motion detection, dynamic analysis, intrusion detection, line crossing |
|
|
|
|
Network & Remote |
|
|
Protocols |
TCP/IP,ICMP,HTTP,HTTPS,FTP,DHCP,DNS,DDNS,RTP,RTSP,RTCP, |
|
System compatibility |
ONVIF (PROFILE S, PROFILE G), ISAPI |
|
CMS |
Full function CMS ( Central monitoring software) |
|
Mobile Client Application |
Supports android and iOS APP for Smart phone and tablets |
|
Bandwidth control |
Supported |
|
Network storage |
NAS (Support NFS,SMB/CIFS), built-in microSD/SDHC/SDXC card |
|
|
|
|
Interface |
|
|
Ethernet |
1 RJ45 10/100 Ethernet port |
|
Power Input |
Standard DC Jack |
|
Audio |
1 audio input (line in), 1 audio output interface (Optional) |
|
Alarm |
1 alarm input, 1 alarm output (Optional) |
|
|
|
|
Electrical |
|
|
Power Requirement |
12 VDC ± 25% , PoE (802.3af) |
|
Power Consumption |
Max. 5W |
|
|
|
|
Environmental |
|
|
Operating Temperature |
-10°C to + 50°C |
|
Operating Humidity |
95% or less (non-condensing) |
|
|
|
|
Mechanical |
|
|
Color |
White |
|
Dimensions |
119.9 x 41.2mm |
|
Weight |
600g |
|
|
|
|
Certifications |
|
|
Certifications |
UL, CE, FCC, RoHS |
