What is an under-vehicle surveillance system (UVSS)?

An Under Vehicle Surveillance System (UVSS), also known as an Under Vehicle Scanning System (UVSS), is a security screening solution designed to scan and analyze the undercarriage of vehicles in real time as the vehicles pass through it. It detects hidden threats such as contraband, explosives, or unauthorized modifications that are difficult to inspect manually.

Unlike traditional inspection methods, modern UVSS systems leverage the following:

• 4K ultra-high-resolution imaging
• 3D visualization of vehicle chassis
• AI-powered foreign object detection (FOD)
• Integration with ANPR (Automatic Number Plate Recognition) and Face Capture Camera

This enables fast, non-intrusive, and highly accurate vehicle inspection critical for high-security environments.

Why is UVSS critical in modern security infrastructure?

Manual inspection is

• Time-consuming : Usually takes 30–45 seconds per vehicle
• Prone to human error and overlook
• Inefficient while inspecting at scale

Modern UVSS eliminates these issues by enabling the following:

• Continuous vehicle flow (no stopping required)
• Real-time threat detection
• Automated data logging and audit trails

From real deployments across airports and ports, land borders, oil & gas facilities, military facilities, and many other critical vehicle entry points, UVSS has proven to significantly improve both security and operational efficiency.

How Does UVSS Work?

UVSS detects a vehicle approaching, scans the underside of the vehicle, processes the image, analyzes and compares the image with the database for any abnormalities, and finally stores the data along with the vehicle's number plate image for review and archiving.

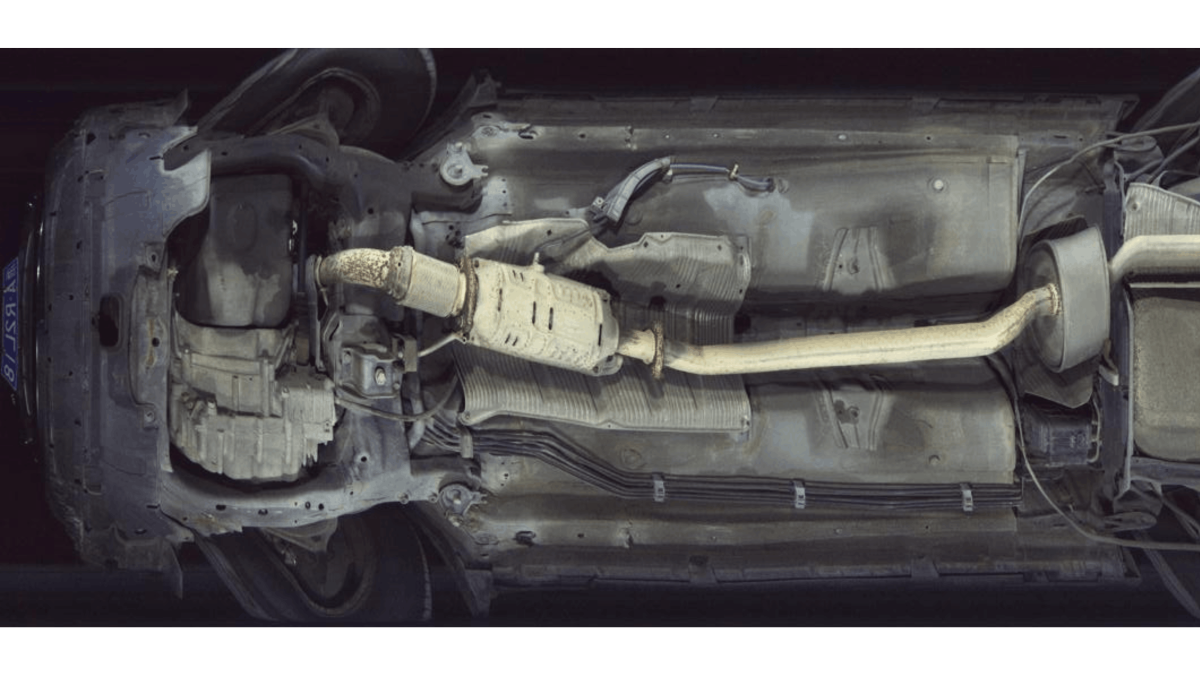

• Area Scan Imaging Technology: Modern UVSS uses area scan cameras to capture complete, distortion-free images of the vehicle underside.
• Dual Tilted Scanners:  Captures 180° visibility, including the critical blind spots such as fuel tanks, exhaust systems, axles, and beams
• 4K Imaging Output: Ultra-clear images up to 10,000 × 4096 resolution enable detection of minute anomalies within seconds
• AI-Based Analytics (FOD): Identifies foreign objects and irregularities by comparing scans against baseline images.
• Integrated Security Stack: ANPR (automatic number plate recognition) for vehicle tracking, driver face capture, and whitelisting/blacklisting alerts.

Real Case Study: Oil & Gas Facility – GCC

Problem:

• The existing system used line-scan technology
• Vehicles had to stop for 40–45 seconds
• Poor image clarity
• No AI or FOD capabilities

Deployed Solution:

• UVSS system at each vehicle entry gate with Dual Area Scan Technology
• 3D visualization with 180° chassis coverage
• 4K imaging + Foreign object detection (FOD)
• Integrated ANPR and driver face-capture cameras
• Integration with boom barrier

Result:

• Improved 25% faster vehicle processing time
• Capture rate & recognition rate: ≥99.9%
• Real-time monitoring with archived data
• Significant efficiency improvement in security and throughput

Key Use Cases of Under-Vehicle Surveillance System (UVSS)

1. Cargo & Logistics Security:
   In ports and logistics hubs
   a) UVSS is used to detect hidden contraband under trucks
   b) High-accuracy inspection without stopping vehicle movements
   c) Critical for high-volume cargo movement
2. Parking Lot Security:
   In commercial and residential parking UVSS is used to
   a) Prevents unauthorized vehicle entry
   b) Automates vehicle verification
   c) Enhances perimeter security
3. Border & Checkpoint Security:
   UVSS is used in borders, airports and government facilities. They provide
   a) High-speed scanning (up to 60 km/h)
   b) Continuous vehicle flow
   c) Reduced manual intervention
4. Industrial & Oil & Gas Security:
   In high-risk environments UVSS requires to scan with
   a) Zero-compromise inspection
   b) Integration with access control systems
   c) High durability (up to 60-ton load capacity)

Top Companies Offering UVSS in UAE and GCC
UVSS suppliers in UAE and GCC: There are a few key players in the market offering different levels of UVSS technology, features, and pricing.

1. Vantage Security
Vantage Security offers more advanced UVSS solutions designed for high-security and high-traffic environments.

• UVSS uses area scan technology for distortion-free imaging
• Offers 4K imaging with 3D dual tilted scanners, giving 180-degree view of the undercarriage and Foreign Object Detection (FOD)
• Supports high-speed scanning up to 60 km/h with bidirectional scanning
• Integrated with ANPR, driver face capture, and smart analytics
• Proven deployments across ports, borders, and industrial facilities

2. ISS (SecuROS UVSS)
ISS provides UVSS as part of a broader security ecosystem.

• Focus on integrated security platforms
• Provides centralized monitoring and control systems
• Suitable for large-scale enterprise security environments

3. CommPort (CPAS UVIS Systems)
CommPort focuses on real-time inspection and data-driven monitoring.

• Real-time undercarriage image capture
• Strong database management and logging system
• Supports anomaly detection through image comparison
• Used in mission-critical and high-security environments

4. CASS Parking
CASS primarily focuses on parking and access control solutions.

• Offers basic UVSS with standard imaging (2MP cameras)
• Designed for parking and entry-level security applications
• Suitable for commercial and residential use cases
• Limited advanced analytics compared to high-end systems

How to Choose the Right UVSS System
Choosing the right UVSS system depends on your security requirements, traffic volume, and level of threat detection needed.
Below are few of the parameters for consideration

1. Imaging Technology
The type of scanning technology directly impacts detection accuracy.

• Area Scan technology provides complete and distortion-free images
• Line scan systems may miss details and require vehicle stoppage
• Higher imaging quality ensures better threat detection

2. Image Resolution
Clarity is critical when identifying small or hidden objects.

• 4K imaging allows detection of minute anomalies
• Low-resolution systems may miss critical threats
• Higher clarity reduces dependence on manual inspection

3. Detection Capabilities
Modern UVSS systems should go beyond just image capture.

• Look for AI-based analytics and FOD (Foreign Object Detection)
• Ability to compare scans with historical data
• Automatic alerts for suspicious objects or anomalies

4. Vehicle Throughput Speed
Speed plays a major role in high-traffic environments.

• Choose systems that support drive-through scanning
• Avoid systems that require vehicles to stop
• High-speed systems improve operational efficiency

5. System Integration
UVSS should work as part of a complete security ecosystem.

• Integration with ANPR for vehicle tracking
• Driver face capture for identity verification
• Whitelisting/blacklisting for automated access control

6. Durability & Load Capacity
For industrial and heavy-duty environments:

• Must support high load capacity (up to 60 tons)
• Should be weatherproof (IP-rated systems)
• Designed for continuous operation in harsh conditions

7. Scalability & Future Readiness
Security requirements evolve over time.

• The system should support multiple lanes and expansion
• Ability to integrate with future technologies
• Centralized monitoring across locations

8. Real-World Performance
Always evaluate based on actual deployments.

• Check for case studies and live installations
• Proven improvement in speed and detection accuracy
• Reliable performance in real environments

Common Buyer Mistakes (Based on Real Experience)

• Choosing based on price instead of detection accuracy
• Ignoring image clarity
• Selecting systems that require vehicle to stop
• Not considering scalability

Why Advanced UVSS Outperforms Traditional Systems

Feature	Traditional UVSS	Advanced UVSS (Yours)
Imaging	HD	4K Ultra HD
Scan Type	Line Scan	Area Scan
Detection	Manual	AI + FOD
Speed	Stop required	Drive-through
Coverage	Partial	180° view

Conclusion:
If your security environment involves:

• High vehicle traffic
• Critical infrastructure
• Risk-sensitive operations

Then a modern UVSS is not optional; it is mandatory infrastructure.
