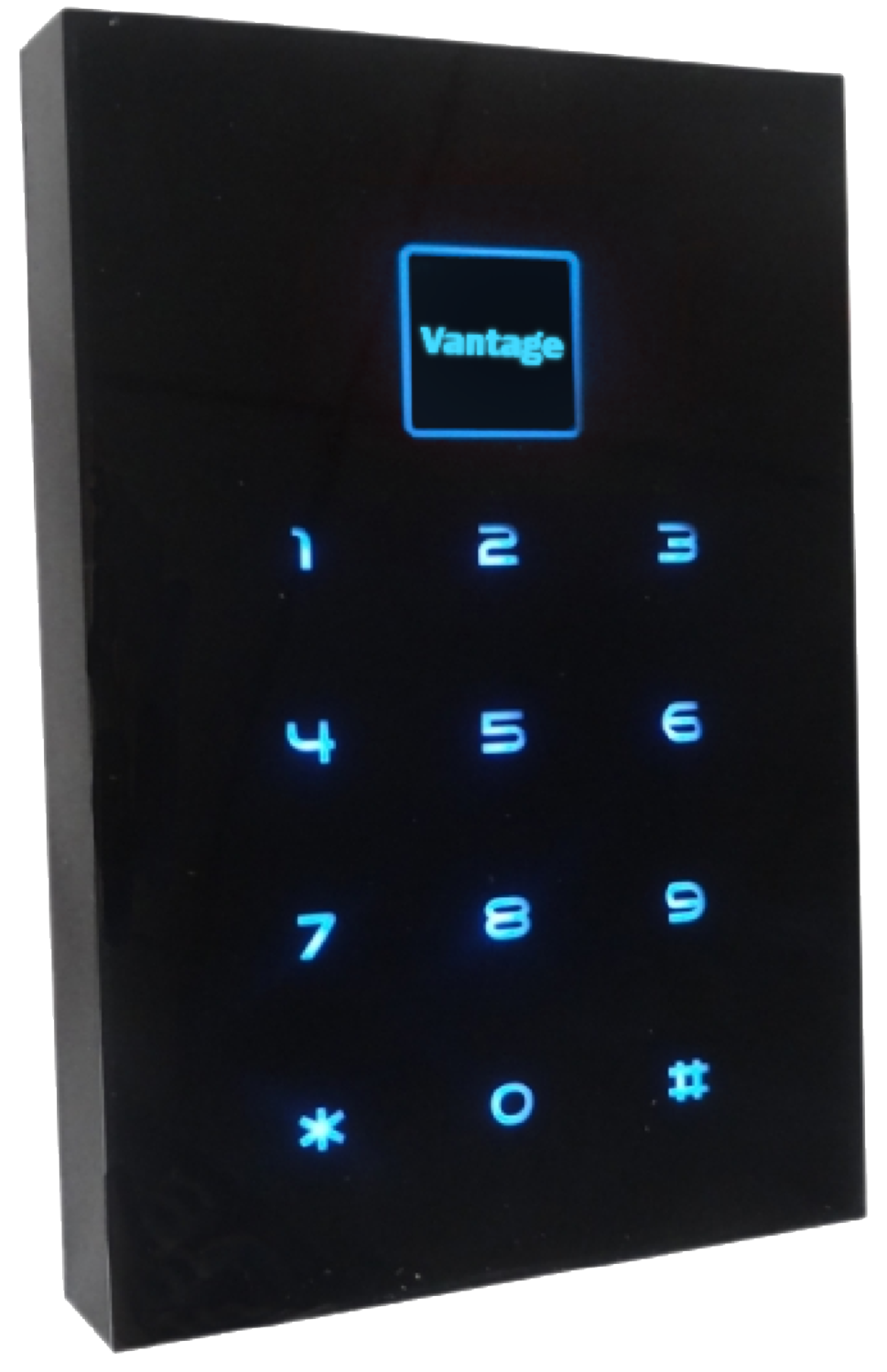

VV-RF100-CAR1  Touch Keypad Door Controller


  • Stand alone RFID proximity card reader
  • Built-in controller and Touch enabled keypad
  • User capacity of 1000 users
  • Read frequency 125 kHz
  • Read range of 3-5 cm
  • Nonvolatile memory
  • LED and buzzer indicator
  • ABS Housing Material
  • Three unlock methods-card only, card+pin code, and card code +pin code
  • Access control function with NO-NC support
  • Exit switch NO type support
Parameter Specifications
Working Voltage DC 12V
Quiescent current <30 mA
Dynamic current <85 mA
Content 1000pcs ID cards and 1000 passwords
Induction Distance ≥5CM(Standard card)
Dimension 116*77*16mm
Compatible card EM ID Card
Working Temperature -20 ~ 60?
Working Humidity < 95% (No condensation)
Water-proof,Dust-proof IP66
Access Control
Buzzer Sound
Buzzer Sound
EM Card
Multicolor LED Indication
Touch Keypad
